• 1-to-5 SATA Port Multiplier
• Full support for FIS-based switching and command-based switching SATA host controllers
• Supports host and device link rates of 1.5Gbps and 3Gbps with auto-negotiation
• Supports host control of hard disk drive staggered spin-up
• All ports support hot plug and extended (48 bit LBA) drive capability.
• ATAPI support
• Features independent 8 KByte FIFO per Device Serial ATA channel for reads and writes
• Host and device status and activity LEDs
• Coupling with SATA2-PCIE02 or SATA2-PCIX01 to support RAID Function (RAID 0, 1, 5, 10, Concatenated and JBOD).

SPMH3726 is 1-to-5 SATA Port Multiplier designed to provide a high performance link between a single SATA host port and 5 SATA device ports. With its unique data aggregation capability and 3Gbps serial link capability, the SPMH3726 is able to take full advantage of 3Gbps host link bandwidth and FIS-based switching host controllers by bundling together data from device ports and sending it over the 3Gbps host link. Additionally, the feature-rich SPMH3726 supports all the port multiplier related SATA II extensions allowing system designers to exploit the full potential of SATA in their storage solutions.

The SPMH3726 supports host and device link rates of 1.5Gbps and 3Gbps with auto-negotiation allowing system designers to utilize 3Gbps host links with todays 1.5Gbps hard drives, and to futureproof designs for the emergence of 3Gbps SATA hard drives. Additionally, the SPMH3726 contains a SATA enclosure management bridge (SEMB) to pass in-band enclosure management information between the host and an enclosure management device. Other important features include, programmable high drive capability for backplane and external applications, asynchronous notification to eliminate the need for host polling to determine if a device has been added or removed, and hot plug support.

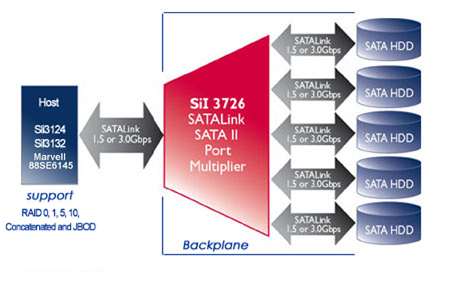

Coupling with proper host controllers such as Silicon Image SiI3124, SiI3132 and Marvell 88SE6145, SPMH3726 - SATA II port multiplier, a high reliable and extremely fast variety of storage applications (RAID 0, 1, 5, 10, Concatenated and JBOD).

SPMH3726 delivers the performance and connectivity required for servers and I/O demanding applications such as CD-ROM servers, Video-On-Demand (digital content and high-definition video), database servers, workstations, high-end desktops, software RAID sub systems, and image systems.

• Host Port
  • Supports one SATA host port, 1.5Gb/s and 3Gb/s
  • Hot Plug support
  • Supports Async Notification
  • SATA Port Multiplier spec. compliant
  • Supports PM aware hosts
  • Two detailed system status LEDs
  • eSATA signal level suppport (1m and 2m PHY compliant)
• Device Port
  • Four SATA device ports, 1.5Gb/s and 3Gb/s
  • Hot Plug support
  • SATA Port Multiplier spec. complaint
  • Compatible with NCQ drives
  • Two LEDs for detailed status per port
  • eSATA signal level support (1m and 2m PHY compliant)
• System Features
  • Five status LEDs for system functions
  • Works without BIOS updates
  • Max. performance greater than 220MB/s
    (RAID 0)
  • Enclosure Management SEMB (I2C bus)
    support
  • Automatic bad sector remapping
  • OS Agnostic operation
  • Bootable arrays and staggered spin-ups
  • ATAPI device support in PM mode
  • Spread Spectrum Clocking w/SSC clock
  • Event logging from GUI
  • Remote monitoring and management
  • Email notification
  • Manage multiple devices via GUI
  • Field-upgradeable firmware

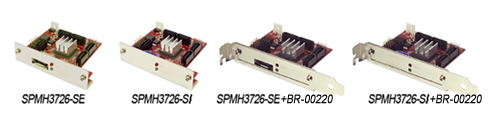

• SPMH3726-SE: SCSI I 50pin Low Density Centronics Connector Form Factor. Host SATA is eSATA for external connection.
• SPMH3726-SI: SCSI I 50pin Low Density Centronics Connector Form Factor. Host SATA is SATA for internal connection.
• SPMH3726-SE+BR-00220 or SPMH3726-SI+BR-00220: Standard PCI Form Factor

• Expansion Storage Bricks
• Disk Shelves
• Storage Enclosures

  It is designed to provide a high performance link between a single SATA2 host port and 5 SATA device ports. With its unique data aggregation and 3Gbps serial link capacity, it supports 5 SATA or SATA2 device with auto-negotiation features over one single eSATA connector.

  SPMH3726 is equipped with a "SCSI I 50pin Low Density Centronics Connector" like bracket to be mounted in a standard enclosure to provide the immediate upgrade of your storage system.

• Kit 1:

  • SPMH3726 1-to-5 SATA Port Multiplier
  • User's Manual

  Kit 2:

  • SPMH3726 1-to-5 SATA Port Multiplier
  • BR-00220 --- PCI Bracket with SCSI I Connector Cut-off
  • User's Manual
