• FW2IDE02D support one IDE (ATA/ATAPI) device.

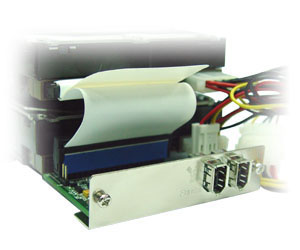

FW2IDE02D is a FireWire (IEEE 1394a) to IDE (ATA/ATAPI) bridge board featuring Oxford OXFW911plus FireWire (IEEE 1394a) to IDE (ATA/ATAPI) Bridge Controller.

FW2IDE02D is ideally suited for tailgate interface applications for removable-media drives CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-RAM, tape drive, and hard disk drive. It allows IDE drive (Master or Slave) to be connected to FireWire (IEEE 1394a) serial bus in a plug-and-play fashion.

Users can easily hot-swap FireWire (IEEE 1394a) drive without interrupting the current operation.

FW2IDE02D provides the perfect solution for data backup and transferring of data between computers using IDE (ATA/ATAPI) devices.

FW2IDE02D also is a selectable hardware RAID bridge for two 3.5" ATA HDD. A true hardware solution, FW2IDE02D requires no software to be installed on your machine.

It provides 3 hardware RAID mode:

• RAID 0 (Striping): for two disks with same capacity.
• Spanning: for two disks with different capacity.
• Non-RAID (JBOD).



FireWire (IEEE 1394a) to IDE (ATA/ATAPI) Bridge Board:

• DC Power Connector: with mini 4-pin Floppy Disk Drive power connector
• IDE (ATA/ATAPI) Interface: One female IDC 2X20 Connector and one male IDC 2X20 Connector
• Both ATA and ATAPI devices are supported using the same firmware.
• FireWire Bus Power: Self Powered Mode Operation
• FireWire ports: Two FireWire 6pin and One JST compatible 7pin connector shared port.
• 1394a PHY: Ti's TSB41AB2 1394a-2000 400Mbps PHY
• 1394 Bus Transfer Rate: 100/200/400 Mbps
• HDD Access LED
• FireWire (IEEE-1394a) to ATA Native Bridge Controller: Oxford OXFW911plus
• Complies with T13's ATA/ATAPI-7 Draft Specification:
  • PIO Mode 0 ~ 4
  • Multiword DMA Mode 0 ~ 2
  • Ultra DMA Mode 0 ~ 6
• Supports 48-bit addressing for large hard drives (>128GB).
• Form Factor: Dual form factor
  • Direct Connect type

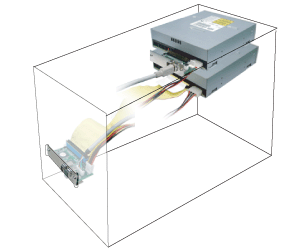

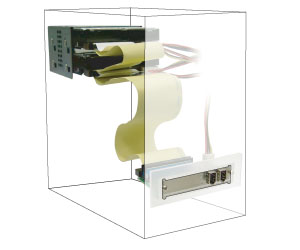

  • SCSI I 50pin Low Density Centronics Connector Form Factor
    (Fit to most standard SCSI enclosure.)

• CB-00214 Ultra DMA100 Cable 6 cm for second device

• CB-00128 Ultra DMA100 Cable 12+6 inch for two devices (Master & Slave)

• 8.45cm (W) x 4.96cm (H) x 2.00cm(D)

• 45.3g

• Desktop PC: with either a built-in FireWire (IEEE-1394) controller or a FireWire (IEEE-1394) to PCI Host Adapter equipped with a external FireWire (IEEE 1394) port.
• Laptop PC: with either a built-in FireWire (IEEE-1394) controller or a FireWire (IEEE-1394) to CardBus PC Card equipped with a external FireWire (IEEE 1394) port.

• Windows 98SE or higher; MacOS 9.1 or higher; Linux
• Driver Requirements
  • FireWire:
    • No driver installation for Windows 98SE, ME, 2000, XP, 2003, Vista, 7, Mac OS and Linux

• FW2IDE02D Bridge Board.
• CB-00265 Y-Shape DC Power Cable (Red, Black, Black, Yellow)
• Installation Guide

Option:

• 1394CB-66L
  FireWire plug to FireWire plug with latch and Ferrite Core on both ends
• FW-JST23
  FireWire 6pin Plug with Latch to JST compatible 7pin female Connector in length of 23 cm
• CO-M0171
  1394a 6pin plug
• Ultra DMA100 Cable

  Part No.
  CB-00127 (CB-000029)	Ultra DMA100 Cable in length of 6 inch (for one device)
  CB-00247 (CB-000066)	Ultra DMA100 Cable in length of 12 inch (for one device).
  CB-00251 (CB-000068)	Ultra DMA100 Cable in length of 18 inch (for one device)
  CB-00128	Ultra DMA100 Cable 12+6 inch for two devices (Master & Slave)
  CB-00214	Ultra DMA100 Cable 6 cm for second device
