Highlights
  • LDU2-ATA01 support one IDE (ATA/ATAPI) device.
Introduction

WHAT IS LAN & USB 2.0 COMBO TO ATA BRIDGE?

  • A LAN-attached storage solution
  • Mass-data transfer through USB 2.0 interface
  • USB/LAN power on detection
  • An ATA interface connection
  • Fast deployment, easy installation
  • Intuitive Web-based interfaces, easy to manage
  • Data sharing on a LAN (SMB) or WAN (ftp)
  • A cost-effective storage solution

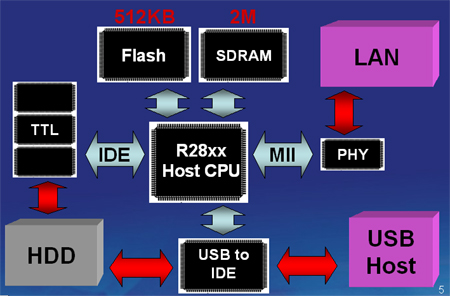

  • Block Diagrm
Technical Specifications
  • SMB server (Max. 32 sessions) / FTP server for data sharing on a LAN or WAN
  • Standalone system (no extra driver needed for clients)
  • Intuitive Web-based interfaces, setup in seconds
  • Compliant with the most popular operating systems, such as Windows 98SE/ME/NT/2000/XP, Mac OS X 10, Linux and Unix (SMB/FTP)
  • File system support: FAT/ FAT32.

    NETWORK PROTOCOLS

  • File Sharing: FTP, SMB over TCP/IP, NBNS
  • Web Browser: HTTP1.0 and HTML 2.0 (for Web-based system management)
  • More Prototcols: DHCP Server/Client (auto detection/static IP), SNTP Client

    SECURITY

  • SMB Server: Share Level Access Control
  • FTP Server: User Level Access Control
  • Web-based Management: Administrator/Password

    WEB MANAGEMENT (system)

  • Status: System Information (server name, workgroup, date/time, time zone, SNTP, system language), Network Status, Disk Information (HDD ID, total size, free size)
  • IP Config:DHCP Server, DHCP Client, Auto IP, Static IP
  • Maintenance: Firmware upgrade, system reboot, factory defaults

    WEB MANAGEMENT (HDD)

  • SMB: folder list/share list management, folder password setting
  • FTP: server status, anonymous control, user accounts management (account status, access right...)
  • Utilities: HDD format, scan disk


Component List
  • CPU:Network Processor Unit with Embedded MII (MAC Controller)
  • Flash ROM: 512 KByte
  • SDRAM: 2 MBite (1M * 16)
  • PHY: IP101A
  • USB to IDE Controller
Kit includes
  • Kit 1:
    • LDU2-ATA01 Lan Disk Bridge Board
    • CB-00072--- Y-Shape DC Power Cable (Red, Black, Black, Yellow) with three power connectors
      one FDD like mini 4pin, one IDE big 4pin male plug and one IDE big 4pin female plug
  • Kit 2:
    • LDU2-ATA01 Lan Disk Bridge Board
    • CB-00072--- Y-Shape DC Power Cable (Red, Black, Black, Yellow) with three power connectors
      one FDD like mini 4pin, one IDE big 4pin male plug and one IDE big 4pin female plug
    • CB-00127 --- Ultra DMA100 Cable in length of 6 inch (for one device).
  • Kit 3:
    • LDU2-ATA01 Lan Disk Bridge Board
    • CB-00072--- Y-Shape DC Power Cable (Red, Black, Black, Yellow) with three power connectors
      one FDD like mini 4pin, one IDE big 4pin male plug and one IDE big 4pin female plug
    • CB-00247 --- Ultra DMA100 Cable in length of 12 inch (for one device).
  • Kit 4:
    • LDU2-ATA01 Lan Disk Bridge Board
    • CB-00072--- Y-Shape DC Power Cable (Red, Black, Black, Yellow) with three power connectors
      one FDD like mini 4pin, one IDE big 4pin male plug and one IDE big 4pin female plug
    • CB-00251 --- Ultra DMA100 Cable in length of 18 inch (for one device).
  • Kit 5:
    • LDU2-ATA01 Lan Disk Bridge Board
    • CB-00072--- Y-Shape DC Power Cable (Red, Black, Black, Yellow) with three power connectors
      one FDD like mini 4pin, one IDE big 4pin male plug and one IDE big 4pin female plug
    • CB-00127 (CB-000029) --- Ultra DMA100 Cable in length of 6 inch (for one device).
    • CB-00175 (CB-U00025)--- A Plug -to- B Plug USB 2.0 cable in length of 1.0m
