Highlights
  • Provides FireWire 800 & USB 2.0 Interface
  • Supports SATA Port Multiplier. (Note: Support IOI SPM39X, SPM3726 only )
Introduction
UF-SATA201 is FireWire 800 (IEEE 1394b) & USB 2.0 Combo to Single SATA Bridge Board

UF-SATA201 is configured in FireWire 800 (IEEE 1394b) & USB 2.0 interface mode for connecting SATA Port Multiplier (IOI SPM39X, SPM3726). No additional USB/1394 host drivers are required, for either Windows or Mac operating systems. Firmware can be programmed through the FireWire or USB ports, simplifying in-field updates.

Technical Specifications
Host Interface
  • USB 2.0:
    • USB B-Type connector
    • USB Bus Transfer Rate: High Speed (480 Mbit) And Full Speed (12 Mbit)
    • USB Bus Power: Self Powered Mode Operation
  • FireWire:
    • Two Bilingual (IEEE 1394b) Connectors
    • 1394b PHY: Ti TSB81BA3
    • 1394 Bus Transfer Rate: 100/200/400/800 Mbps
Device Interface
  • SATA Signal 7pin Latch Type Connector
  • Supports storage with more than 2TB per Volume
  • Supports SATA Port Multiplier. (Note: Support IOI SPM39X, SPM3726 only )
DC Power Connector
  • Mini 4-pin Floppy Disk Drive like power connector
  • Supply DC 5V&12V power
  • It is a Self-powered bridge board and need DC 5V power.
Environmental
Condition
  • Operating Temperature: 10℃~40℃ (50℉~104℉)
  • Relative Humidity: 10%~85% Non-condensing
Physical Dimensions
  • SCSI I 50pin Low Density Centronics Connector Form Factor (Fit to most standard SCSI enclosure)
  • 83.3(W) x 19 (H) x61.5(D)mm
Pin Header
  • Power LED
  • HDD Active LED
  • 1394/USB Active LED

Applications

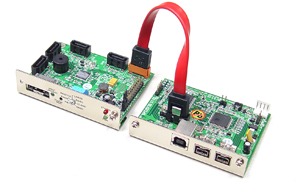

Integrating UF-SATA201 and SPM393PS (-SEV or -SHE)  is a cost-effective solution for eSATA/FireWire 800/USB 2.0 to Quad SATA RAID.

SPM393PS-SEV
+
UF-SATA201
Kit includes
  • UF-SATA201 bridge board.
  • CB-00072--- Y-Shape DC Power Cable (Red, Black, Black, Yellow) with three power connectors
    one FDD like mini 4pin, one IDE big 4pin male plug and one IDE big 4pin female plug
  • User's Manual
