Highlights
  • Gigabit Network USB 2.0 Server Board
  • Supports Bonjour search for Mac OS (Printer Only)
  • Supports Rally search for Windows
  • Supports up to 4 USB ports
Introduction

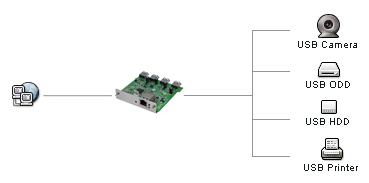

The UOE-G411S Gigabit Network USB 2.0 Server Board allows network users to connect remote high speed USB devices like Printers, Scanners, Digital Cameras, HIDs (Human Interface Devices), HDDs (Hard Disk Drives), ODDs (Optical Disk Drives) and Flash drives over the network. It is ideal for home office, small office or classroom use!

The Gigabit Network USB 2.0 Server Board supports both Ethernet and Wi-Fi networks – making it easy to use devices from a Wi-Fi based laptop!

The UOE-G411S Gigabit Network USB 2.0 Server Board comes with user friendly client software which maps USB devices connected to the USB server onto the local host machine.

Technical Specifications
  • Cost-effective Network Printer Server solution
  • Trouble-free installation: Installer for Windows XP and Windows Vista
  • Live device status monitoring via both web browser and application software
  • Manages print jobs by printer name instead of IP address
  • Embedded USB 2.0 host controller and transceiver, fully compliant with USB1.1/USB2.0 (Hi-speed) specifications
  • Supports Ethernet 10/100Mbps and Gigabit 1000Mbps
  • Supports LED indicators for Ethernet speed and connection
  • Supports up to 4 USB devices
  • Supports USB printers, MFPs, storage, HIDs, UVC cameras
  • Supports DHCP  and automatically configures IP Address
  • Supports major Ethernet protocols TCP/IP, Bonjour search
  • Supports LPD/LPR printing on Windows, and Mac OS
  • Supports Bonjour network printer setup for Mac OS
  • DC Power Connector: Mini 4-pin FDD (Floppy Disk Drive) like power connector
Available Models

UOE-G411SH : Right angle USB A receptacle connector

UOE-G411SV: Straight USB A receptacle connector
USB Server Board Compatibility List
Physical Dimensions
  • 21.56mm (H) x 94.5mm (W) x 86.5mm (D)
Applications

You can connect to USB printers, MFP, storages, HIDs, UVC cameras

Operating System Requirements
  • Windows XP and Windows Vista
  • Mac OS (Only support Printer)
Kit includes
  • UOE-G411S Gigabit Network USB 2.0 Server Board
  • CB-00072--- Y-Shape DC Power Cable (Red, Black, Black, Yellow) with three power connectors
    one FDD like mini 4pin, one IDE big 4pin male plug and one IDE big 4pin female plug
  • PK-MA204 --- UOE-G411S Overview
  • CD-title (AP & Driver, User Manual)
