Highlights
  • USB3.0 to 10/100/1000Mbps Ethernet
  • Support Wake-on-LAN function
  • Driver-less Design
    • Windows 8.1 inbox driver
    • Auto-Installation for Windows XP/Vista/7/8/8.1 drivers
    • Support CDC-ECM for Linux/Android/MacOS
  • Supports power down/link down power saving
  • Support IEEE 802.3az (Energy Efficient Ethernet)
  • Supports jumbo frame to 9K bytes
  • Auto-Install for Windows Driver
Introduction

DU3-GE11 is an USB 3.0 to 10/100/1000M Ethernet Bridge Board. It allows user's computer instantly connect to a 10/100/1000Mbps network through an existing USB port. With compliance with USB 3.0 specification, this Bridge Boardensures true 10/100/1000Mbps network speed without any compromise. Besides, compact and bus-powered design means external power is not required.

The 10/100/1000M Ethernet controller combines an IEEE 802.3u compliant Media Access Controller (MAC), USB 3.0 bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, it offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capabilities.

DU3-GE11 is fully compliant with Microsoft NDIS5, NDIS6 (IPv4, IPv6, TCP, UDP) Checksum features, and supports IEEE 802 IP Layer 2 priority encoding and IEEE 802.1Q Virtual bridged Local Area Network (VLAN). The above features contribute to lowering CPU utilization, especially benefiting performance when in operation on a network server.

Specification
  • RJ-45: Two Ethernet connectors
    • LED: Activity & Link LEDs
  • USB 3.0:
    • USB 3.0 2-in1 Internal Port (USB 3.0 internal cable connector A, or USB3 ICC A)
  • Integrated 10/100/1000M transceiver
  • Auto-Negotiation with Next Page capability
  • Supports USB 3.0, 2.0, and 1.1
  • Supports CDC-ECM
  • Supports LPM (Link Power Management)
  • Supports pair swap/polarity/skew correction
  • Crossover Detection & Auto-Correction
  • Supports Wake-On-LAN and 'RealWoW!' (Wake-On-WAN) Technology
  • Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts
  • XTAL-Less Wake-On-LAN
  • Supports power down/link down power saving
  • Supports hardware CRC (Cyclic Redundancy Check) function
  • Software
    • Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
    • Supports jumbo frame to 9K bytes
    • Driver-less Design
      • Windows 8.1 inbox driver
      • Auto-Installation for Windows XP/Vista/7/8/8.1 drivers
      • Support CDC-ECM for Linux/Android/MacOS
  • IEEE
    • Supports Full Duplex flow control (IEEE 802.3x)
    • Fully compliant with IEEE 802.3 and IEEE 802.3u
    • Supports IEEE 802.1P Layer 2 Priority Encoding
    • Supports IEEE 802.1Q VLAN tagging
    • Supports IEEE 802.3az-2010 (EEE)
  • Microsoft AOAC (Always On Always Connected)
    • Supports 16-set 128-byte Wake-Up Frame pattern exact matching
    • Supports link change wake up
    • Supports Microsoft WPD (Wake Packet Detection)
    • Supports Protocol Offload (ARP & NS) at all speeds
  • Intel CPPM (Converged Platform Power Management)
    • Supports L1 with 3ms BESL (USB 2.0)
    • Dynamic LTM messaging (USB 3.0)
    • Supports U1/U2 (USB 3.0)
    • Supports selective suspend

Application

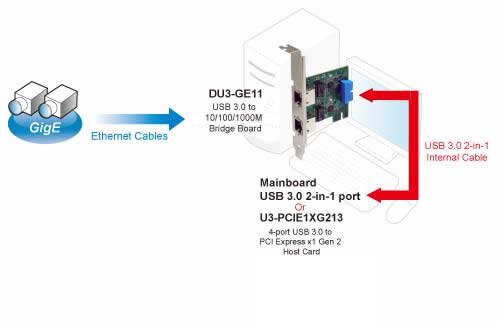

  • U3-PCIE1XG213---4-port USB 3.0 to PCI Express x1 Gen 2 Host Card.
  • CB-00592-01 --- USB 3.0 2-in-1 Internal Cable L=41cm
Physical Dimensions
  • 67(W) x 63[120](H) mm
  • NW: 40.5g
Certifications
  • CE Test: Pass
  • FCC Test : Pass
  • VCCI Test: Pass
Operating System Requirements

Auto-Install for Windows Driver

  • Windows® XP
  • Windows® Vista
  • Windows® 7
  • Windows® 8

Driver-less Design with CDC-ECM support

  • Windows 8.1 Inbox
  • Mac OS
  • Android
  • Linux

Driver for

  • Linux
Kit includes
DU3-GE11-P
  • DU3-GE11-P
  • CB-00592-01--- USB 3.0 2-in-1 Internal Cable, L=41cm
