Highlights
  • USB 3.2 Gen 2 to PCI Express NVMe SSD Bridge
    • Support up to USB 3.1 Gen2 (10Gbps)
    • Support BOT and UAS Protocol
    • Support up to PCI Express Gen3 x2
    • Support PCI Express NVMe SSD without driver
  • Type-C Connector (Type-C Receptacle, USB IF TID 5200000033)
  • PCIe x4 Slot (x2 mode) for NVMe (PCIe-based) SSD
    • Supports 2-lane PCI Express Bandwidth
    • Support Half-Size NVMe (PCIe-based) SSD to PCI Express x4 Adapter
  • Provides Jumper for Write Protection (Read-only) or Read / Write selection
  • Provide indicator LEDs
    • PCIe Power & Activity LED
    • Write Protection (Read-only) LED
  • Single DC 12V Input
    • No Power Switch (Power On/Off Control by USB 3.1 to PCIe NVMe Bridge automatically)
Introduction

U31-NVMe21E is an USB 3.2 Gen 2 (10Gbps) to PCIe Gen3 x2 NVMe device adapter. It uses for external USB 3.1
Gen 2 (10Gbps) NVMe (PCIe-based) SSD application without additional driver.
The U31-NVMe21E has an USB 3.1 SuperSpeedPlus Type-C UFP (Up Facing Port) and a PCIe x4 (x2 mode) Slot for connecting all kind of NVMe (PCIe-based) SSD Modules. The high performance USB 3.2 Gen 2 (10Gbps) interface can connect to any super speed plus/ super speed/ high speed or full speed USB host or USB hub and can instantly be detected as "USB Attached SCSI (UAS) Mass Storage Device".
The PCIe x4 (x2 mode) Slot (Downstream Port) will allow you to install PCIe Add-in-Card form factor NVMe (PCIe-based) SSD Modules. You also can install M.2 NVMe SSD, U.2 NVMe SSD or CFexpress Card with the help of M.2, U.2 or CFexpress to PCIe x4 Adapters.
U31-NVMe21E provides a Jumper which allow user to set the function for selecting Write Protection (Read-only) or Read / Write.
Technical Specifications
USB Feature
  • Support up to USB 3.2 Gen2 (10Gbps)
  • Support BOT and UAS Protocol
  • Support USB link power management
  • Support USB Hot Plug
  • Support Spread Spectrum Clock Control
  • Support unmap command set
  • Support ATA passthrough command set
  • Support vender specific command set
  • Compliant with Universal Serial Bus 3.2 Revision 1.0
  • Compliant with USB Type-C spec Release 1.3
PCI Express Feature
  • Support up to PCI Express Gen3 x2 (16Gbps)
  • Support PCI Express NVMe SSD without driver
  • Support Spread Spectrum Clock Control
  • Support PCI Express link power management
  • Compliant with PCI Express base spec Revision 3.1a
  • Compliant with PCIe M.2 Revision 1.0
NVM Express Feature
  • Support NVMe power management
  • Support NVMe: SCSI Translation Reference Revision 1.5
  • Support Trim command set
  • Support NVMe Error Reporting & Recovery
  • S.M.A.R.T drive monitoring
  • Compliant with NVMe Revision 1.3c
UFP (Upstream Facing Port)
  • Type-C Connectors (Type-C Receptacle, USB IF TID 5200000033)

DFP (Downstream Facing Port)
  • PCIe x4 slot (x2 mode) for NVMe (PCIe-based) SSD
    • Supports 2-lane PCI Express Bandwidth
    • Support Half-Size NVMe (PCIe-based) SSD to PCI Express
      x4 Adapter
    • Support CFexpress to PCIe Express x2 Adapter
Switch
  • Write Protection Setting Switch:
    • Write Protection (Read-only)
    • Read / Write
LEDs
  • PCIe Power & Activity LED
    • ON: PCIe Power ON
    • Flash: Activity
  • Write Protection (Read-only) LED

Power

  • E1:
    • DC Power input Connector: Walkman-type 2.0 mm DC Jack
    • Power Input Range: DC 12V ( max. 5.0A)
  • E2:
    • MINI-COMBICON Header
    • Power Input Range DC 12V (max. 8.0A)
Dimensions
  • 25.4mm (H) x 101mm (W) x 90mm (D)
  • NW: 221.5g
Available Models

U31-NVMe21E1
Walkman-type 2.0 mm DC Jack

U31-NVMe21E2
MINI-COMBICON Headers
Related Products

Kit includes
U31-NVMe21E1-xx1
  • U31-NVMe21E1---USB 3.2 Gen 2 (10Gbps) to PCIe Gen3 x2 NVMe SSD Bridge Enclosure
  • CB-00708-01---USB 3.1 Gen2 Std-A Plug to Type-C Plug Cable, L=1M
  • CB-00709-01---USB 3.1 Gen2 Type-C Plug to Type-C Plug Cable, L=1M
  • xx---AC power cord 6 feet length (option) with Power Adapter (PS-00025-03) AC to DC Power Adapter (12V/5A)
    • US---North America Plug (NEMA 5-15) : CB-00260-02
    • EU---Europe Plug (CEE 7-VII Schuko) : CB-00264
    • UK---British Standard Plug (BS 1363) : CB-00103
    • AU---Australia Plug (AS3112) : CB-00272

U31-NVMe21E1-xx1A

  • U31-NVMe21E1---USB 3.2 Gen 2 (10Gbps) to PCIe Gen3 x2 NVMe SSD Bridge Enclosure
  • CB-00708-01---USB 3.1 Gen2 Std-A Plug to Type-C Plug Cable, L=1M
  • CB-00709-01---USB 3.1 Gen2 Type-C Plug to Type-C Plug Cable, L=1M
  • xx---AC power cord 6 feet length (option) with Power Adapter (PS-00025-03) AC to DC Power Adapter (12V/5A)
    • US---North America Plug (NEMA 5-15) : CB-00260-02
    • EU---Europe Plug (CEE 7-VII Schuko) : CB-00264
    • UK---British Standard Plug (BS 1363) : CB-00103
    • AU---Australia Plug (AS3112) : CB-00272

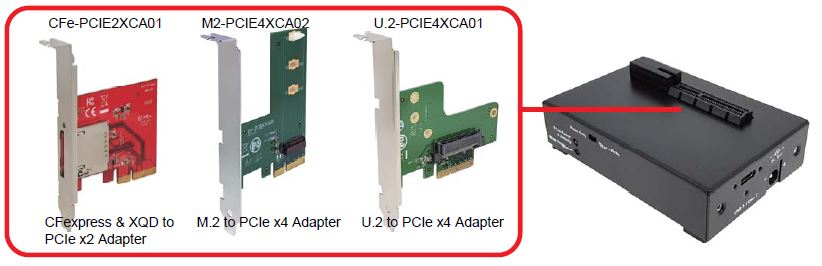

  • A: PCIe Adapter
