External Mini SAS 26pin(SFF-8088) to Mini SAS 26pin(SFF-8088) Cable, SAS 6Gbps
| Part No. | Length | AWG | NW |
| CB-S0011-A100 | 1000±30mm | 28 | 151g |
| CB-S0011-A125 | 1250±50mm | 28 | 170g |
| CB-S0011-A200 | 2000±50mm | 28 | 235g |
| CB-S0011-A300 | 3000±50mm | 28 | 319g |
| CB-S0076-A100 | 1000±30mm | 30 | 130g |
| CB-S0076-A125 | 1250±50mm | 30 | 144g |
| CB-S0076-A200 | 2000±50mm | 30 | 196g |
| CB-S0076-A300 | 3000±50mm | 30 | 266g |
Connector:
- P1, P2: Mini SAS 4x Cable Plug - 26CKT Connector (SFF-8088)
- Latch: Stainless steel
- Pull latch: Nylon, Color Blue
- Backshell: Zinc die casting hood/ nickel plating
- With external universal key

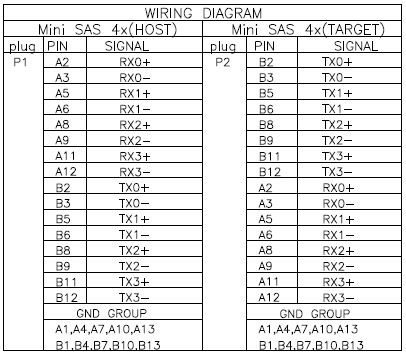

Pin Assignment:
