Technical Specifications

External PCIe x4 Cable (38pin to 38pin)

Model No. AWG Length N.W.
CB-00485-A0 28AWG 1.5m 210g
CB-00485-A1 28AWG 1m 177.5g
CB-00485-A2 28AWG 2.0m 243g
CB-00485-A3 28AWG 3.0m 310.5g
CB-00485-A4 28AWG 0.5m 132g
CB-00485-A5 28AWG 4.0m 389g
CB-00485-A50 24AWG 5.0m 705g
CB-00485-A60 24AWG 6.0m 881g
CB-00485-A70 24AWG 7.0m 1059g
Pin Assignment

External PCIe x4 38pin male connector (iPass 38pin compatible)

Pin# Signal Pin# Signal
A1 GND B1 GND
A2 PETp0 B2 PERp0
A3 PETp0 B3 PERn0
A4 GND B4 GND
A5 PETp1 B5 PERp1
A6 PETn1 B6 PERn1
A7 GND B7 GND
A8 PETp2 B8 PERp2
A9 PETn2 B9 PERn2
A10 GND B10 GND
A11 PETp3 B11 PERp3
A12 PETn3 B12 PERn3
A13 GND B13 GND
A14 CREFCLK+ B14 NC
A15 CREFCLK- B15 NC
A16 GND B16 NC
A17 SB_RTN B17 NC
A18 CPRSNT# B18 CWAKE#
A19 CPWRON B19 CPERST#

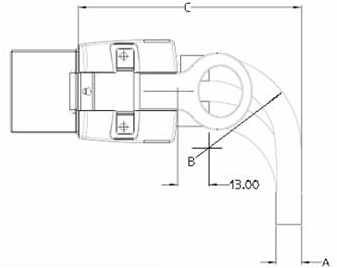

Minimum Bend Radius

  CABLE GAGE
28
26
A Cable diameter
8.4
8.6
B minimum outer radius
38.7
38.7
C faceplate to outer radius
94
94

Unit:mm
