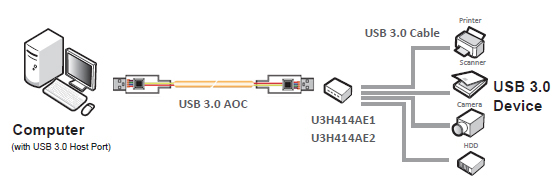

USB 3.0 AOC (Active Optical Cable), featuring embedded optical transceivers.
Active Optical Cable (AOC) is a cabling technology that accepts same electrical inputs as a
traditional copper cable, but uses optical fiber “between the connectors”. AOC uses electricalto-
optical conversion on the cable ends to improve speed and distance performance of the cable
without sacrificing compatibility with standard electrical interfaces.
Special optical fiber used particular for FTTD (fiber to the desk) applications
- Supports 850 nm VCSEL (Multi-Mode) and 1310 nm Silicon Photonics (Multi-Mode) Lasers
- Low Splice Loss

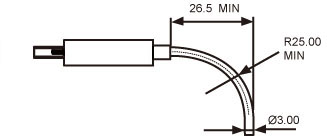

- Bend-Insensitive
- Trench Index Profile Fiber
O/E module integrated active optical fibers for high speed data link @5Gbps
Length:
| A plug to A plug (A0A0) | |||
| Part No. | Color | Length | OD |
| U3AOC-A0A0030 | Orange | 30m | 3mm |
| U3AOC-A0A0060 | Orange | 60m | 3mm |
| U3AOC-A0A0050 | Orange | 50m | 3mm |
| U3AOC-A0A0100 | Aqua | 100m | 3mm |
