Technical Specifications

USB 3.0 2-in-1 Female (10X2_19pin) Cable

Connector:

USB 3.0 2-in-1 Female Connector (10X2_19pin)

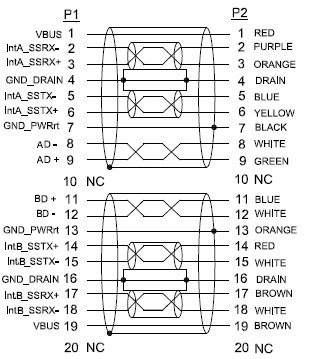

Pin Assignment:

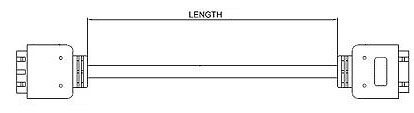

Length:

Part No. LENGTH"A" AWG (U3/U2/PWR) OD
CB-00592-01 410±20mm 28/28/26 6.4
CB-00592 600±20mm 28/28/26 6.4
CB-00592-02 200±20mm 28/28/26 6.4
CB-00592-03 150±20mm 28/28/26 6.4
CB-00592-04 300±20mm 28/28/26 6.4
CB-00592-05 800±20mm 28/28/26 6.4
CB-00592-06 1000±30mm 28/28/26 6.4
