Mini-SAS HD 4i Plug (SFF-8643 36P) to U.2 Receptacle (SFF-8639 68P) Cable with Power

Connector:

Mini-SAS HD 4i Plug (SFF-8643 36P)

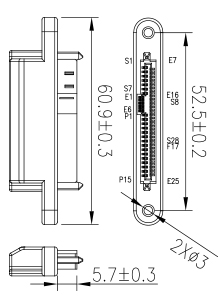

U.2 Receptacle (SFF-8639 68P)

	Part No.	LENGTH	AWG	ohm
	CB-S0018	SFF-8639 68P to SFF-8643 36P : 650mm	28	85
		SFF-8639 68P to SATA 15pin Power: 120mm	18
	CB-S0018-01	SFF-8639 68P to SFF-8643 36P : 500mm	30	85
		SFF-8639 68P to SATA 15pin Power: 120mm	18
	CB-S0019	SFF-8639 68P to SFF-8643 36P : 650mm	28	85
		SFF-8639 68P to IDE Big 4pin Power: 120mm	18

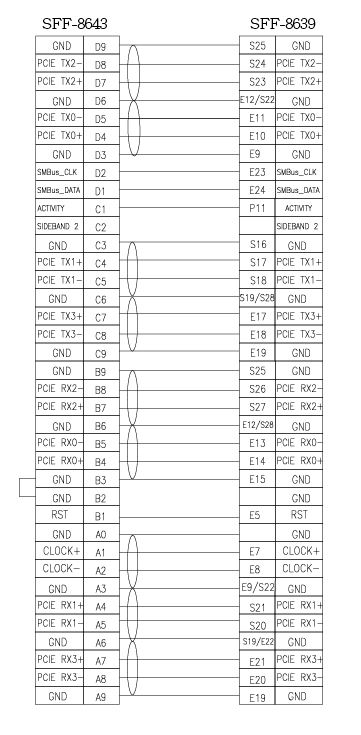

Pin Assignment:

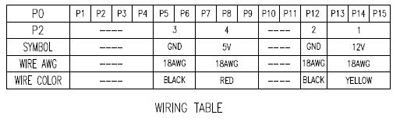

For CB-S0018 w/SATA 15 pin

For CB-S0019 w/IDE big 4 pin
