SlimSAS 4i 38pin (SFF-8654) Cable
- SFF-9402 Reference Multi-Protocol Internal Cables for SAS and/or PCIe
- For SAS-4 (SFF-8654)/ Other Protocol (SFF-8654) x4 Connections only
- SlimSAS 4i 38pin (SFF-8654) Plug to SlimSAS 4i 38pin (SFF-8654) Plug
Connector:
SlimSAS 4i 38pin (SFF-8654)
For A series |
For B Series |
For C Series |
|
|
|
Length:
Part No. |
LENGTH |
AWG |
Differential Impedance |
CB-S0036-A03 |
0.3M |
30 |
85Ω |
CB-S0036-A05 |
0.5M |
30 |
85Ω |
CB-S0036-A65 |
0.65M |
30 |
85Ω |
CB-S0036-A80 |
0.8M |
30 |
85Ω |
CB-S0036-B03 |
0.3M |
32 |
85Ω |
CB-S0036-B05 |
0.5M |
32 |
85Ω |
CB-S0036-B65 |
0.65M |
32 |
85Ω |
CB-S0036-B80 |
0.8M |
32 |
85Ω |
CB-S0036-C03 |
0.3M |
30 |
85Ω |
CB-S0036-C05 |
0.5M |
30 |
85Ω |
CB-S0036-C80 |
0.8M |
30 |
85Ω |

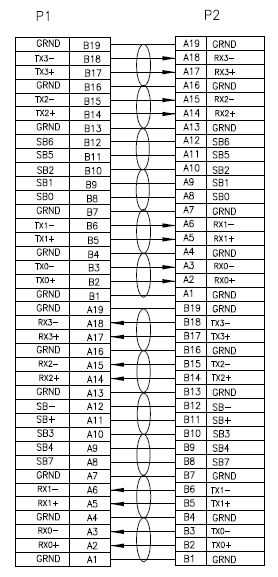

Pin Assignment:
|
