SlimSAS 8i 74pin (SFF-8654) to two Mini-SAS HD 4i 36pin (SFF-8643) Y-Cables

• SFF-9402 Reference Multi-Protocol Internal Cables for SAS and/or PCIe
  • For SAS-4 (SFF-8654)/ Other Protocol (SFF-8654) x8 Connections only
• SlimSAS 8i 74pin (SFF-8654) Plug to two Mini-SAS HD 4i 36pin (SFF-8643) Plug

Connector:

P0: SlimSAS 8i 74pin (SFF-8654)

For A Series	or	For B Series	or	For C Series

P1 or P2: Mini-SAS HD 4i 36pin (SFF-8643)

For A Series	or	For B Series	or	For C Series

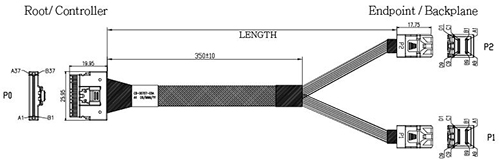

Length:

Part No.	LENGTH	AWG	Differential Impedance
CB-S0039-A05	0.5M	30	85Ω
CB-S0039-A75	0.75M	30	85Ω
CB-S0039-B05	0.5M	32	85Ω
CB-S0039-C05	0.5M	30	85Ω

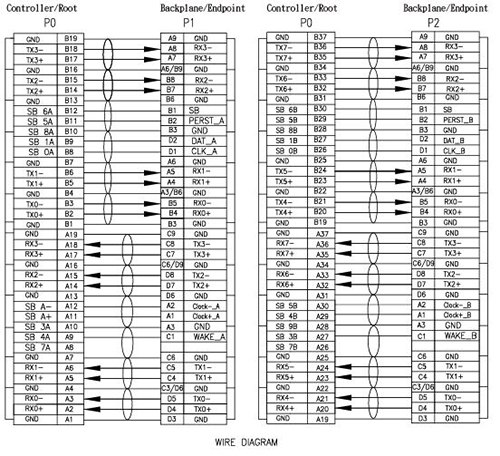

Pin Assignment:

• Host
  • DIP8X-PCIE16XB02---Internal PCIe (two SFF-8654 74pin) to PCI Express x16 Bifurcation Riser Card
• Device
  • DIPCIE4XM201---SFF-8643 to M.2 (PCIe x4) 2-in-1 Docking Board
  • IPCIE4XU201 ---SFF-8643 to U.2 (PCIe x4) Docking Board
  • DB525-DIPCIE4XD01---SFF-8643 to PCIe x4 Add-on Card Docking Board (5.25 inch ODD Form Factor)
  • DIPCIE4XD01---SFF-8643 to PCIe x4 Slot Board
  • IPCIED4XD02 ---SFF-8643 to PCIe x16 (x8 mode) Slot Board
