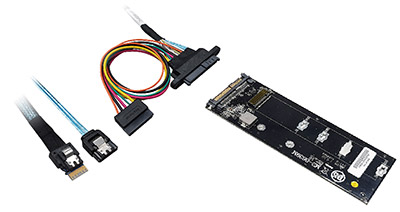

SlimSAS 4i (SFF-8654 38P) plug & SATA 7pin Plug to U.2 Receptacle (SFF-8639 68P) Cable with Power/F ( for QU2K1 or PWR-CTRL02)
- Upstream: SlimSAS 4i (SFF-8654 38P) Plug & SATA 7pin Plug
- Downstream: U.2 Plug (SFF-8639 68P) Receptacle Port
- Power: SATA 15pin Female Connector
- SAS Cable: UL20744, 30AWG, 85ohm
- SFF-9402 Reference Multi-Protocol Internal Cables for SAS and/or PCIe
- For SAS-4 (SFF-8654)/ Other Protocol (SFF-8654) x4 Connections only
Connector:
SlimSAS 4i (SFF-8654 38P) Plug
SATA 7pin Plug
U.2 Receptacle (SFF-8639 68P) Receptacle Port
| Part No. | LENGTH | AWG | ohm |
| CB-S0043-A03 | SFF-8639 68P to SFF-8654 38P : 300mm | 30 |
85 |
| SFF-8639 68P to SATA 7pin : 300mm | 30 | 100 | |
| SFF-8639 68P to SATA 15pin Power/F: 300mm | 18 | ||
| CB-S0043-A50 | SFF-8639 68P to SFF-8654 38P : 500mm | 30 | 85 |
| SFF-8639 68P to SATA 7pin : 500mm | 30 | 100 | |
| SFF-8639 68P to SATA 15pin Power/F: 500mm | 18 |
Connector Pin assignment and Cable Assembly Wiring:

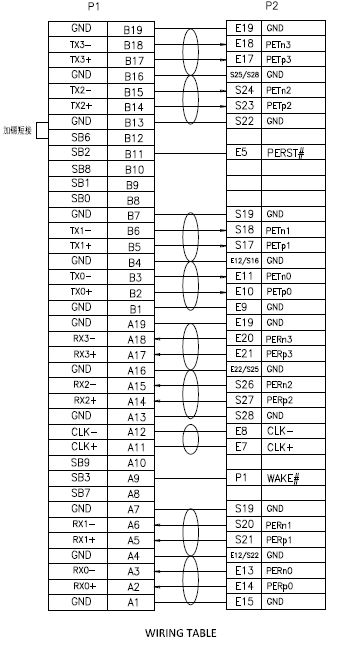

P1: SlimSAS 4i (SFF-8654 38P) to P2: U.2 Receptacle (SFF-8639 68P) Cable Assembly Wiring
P4: SATA 7pin Plug to P2: U.2 Receptacle (SFF-8639 68P) Receptacle Port Cable Assembly Wiring

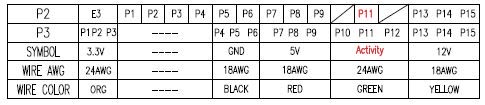

P3: SATA 15 pin Female Plug to P2: U.2 Receptacle (SFF-8639 68P) Receptacle Port Cable Assembly Wiring
