Technical Specifications

PCI Express x16 (gold finger) to x16 Slot Gen 4 Riser Card Extension Cable

Connector:

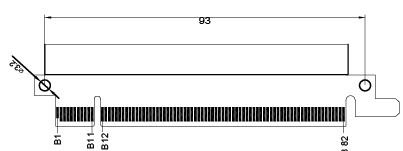

PCIe x16 Connector (gold finger)

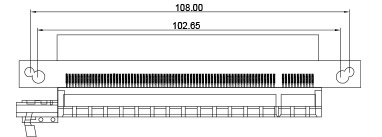

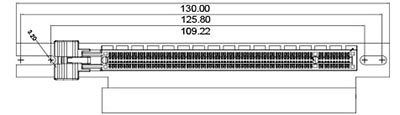

PCIe x16 slot riser card

CB-00713

CB-00714

CB-00715

CB-00732

Orientation:

Part No. LENGTH Orientation
CB-00713-10 100mm Straight Angled (180°)
CB-00713-15 150mm Straight Angled (180°)
CB-00713-20 200mm Straight Angled (180°)
CB-00713-30 300mm Straight Angled (180°)
CB-00713-40 400mm Straight Angled (180°)
CB-00713-50 500mm Straight Angled (180°)
CB-00714-10 100mm Left Angled (90°)
CB-00714-20 200mm Left Angled (90°)
CB-00714-30 300mm Left Angled (90°)
CB-00714-40 400mm Left Angled (90°)
CB-00714-50 500mm Left Angled (90°)
CB-00715-10 100mm Right Angled (270°)
CB-00715-20 200mm Right Angled (270°)
CB-00715-30 300mm Right Angled (270°)
CB-00715-40 400mm Right Angled (270°)
CB-00715-50 500mm Right Angled (270°)
CB-00732-20 200mm Reverse Angled (180°)
