Mini-SAS HD 4i Plug (SFF-8643 36P) plug & SATA 7pin Plug to U.2 Receptacle (SFF-8639 68P) Cable with Power/F ( for QU2K1 or OU2K1)
- Upstream: Mini-SAS HD 4i Plug (SFF-8643 36P) & SATA 7pin Plug
- Downstream: U.2 Plug (SFF-8639 68P) Receptacle Port
- Power: SATA 15pin Female Connector
- SAS Cable: UL20744, 30AWG, 100ohm, 24Gbps, HF
Connector:
Mini-SAS HD 4i Plug (SFF-8643 36P)
SATA 7pin Plug
U.2 Receptacle (SFF-8639 68P) Receptacle Port
| Part No. | LENGTH | AWG | ohm |
| CB-S0046-A05 | SFF-8639 68P to SFF-8643 36P : 500mm | 30 |
85 |
| SFF-8639 68P to SATA 7pin : 500mm | 30 | 100 | |
| SFF-8639 68P to SATA 15pin Power/F: 300mm | 18 |
Connector Pin assignment and Cable Assembly Wiring:

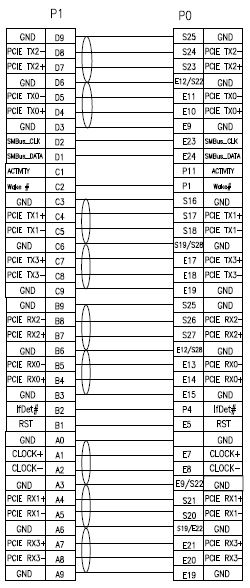

P1: Mini-SAS 4i (SFF-8643 36P) to P2: U.2 Receptacle (SFF-8639 68P) Cable Assembly Wiring
P4: SATA 7pin Plug to P2: U.2 Receptacle (SFF-8639 68P) Receptacle Port Cable Assembly Wiring
P3: SATA 15 pin Female Plug to P2: U.2 Receptacle (SFF-8639 68P) Receptacle Port Cable Assembly Wiring
