Technical Specifications

External Mini-SAS HD (SFF-8644) 4i plug to U.2 Receptacle (SFF-8639 68P) Cable with SATA Power

Connector:

External Mini-SAS HD (SFF-8644) 4i plug

U.2 Receptacle (SFF-8639 68P)

Lengthr:

Part No. LENGTH AWG ohm
CB-S0055-B75 SFF-8639 68P to SFF-8644 36P : 750mm

30

85

SFF-8639 68P to SATA 15pin Power: 300mm 18

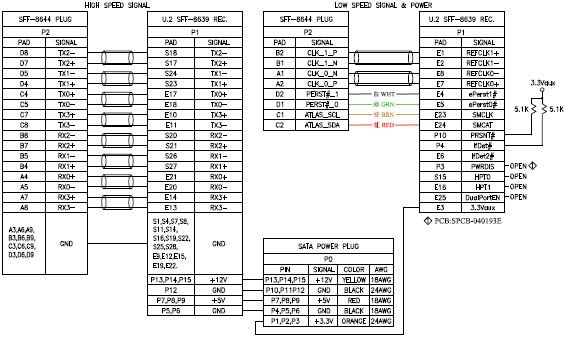

Pin Assignment:
