Technical Specifications

SlimSAS 8i 74pin (SFF-8654) to SlimSAS 8i 74pin (SFF-8654) Right Angle Cable

  • SFF-9402 Reference Multi-Protocol Internal Cables for SAS and/or PCIe
    • For SAS-4 (SFF-8654)/ Other Protocol (SFF-8654) x8 Connections only
  • SlimSAS 8i 74pin (SFF-8654) Plug to SlimSAS 8i 74pin (SFF-8654) Plug
  • SAS Cable: UL20744, 30AWG, 85ohm

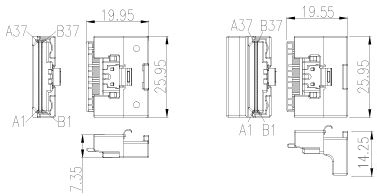

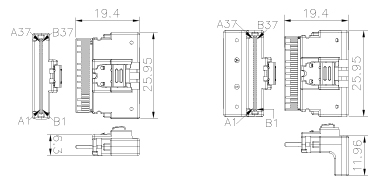

Connector:

SlimSAS 8i 74pin (SFF-8654) For A Series

SlimSAS 8i 74pin (SFF-8654) For C Series

Length:
Part No. LENGTH AWG Differential Impedance
CB-S0044-A02 0.2M 30 85Ω
CB-S0044-A03 0.3M 30 85Ω
CB-S0044-C30 0.3M 30 85Ω
CB-S0044-C50 0.5M 30 85Ω
CB-S0044-C65 0.65M 30 85Ω
CB-S0044-C70 0.7M 30 85Ω
CB-S0044-C80 0.8M 30 85Ω

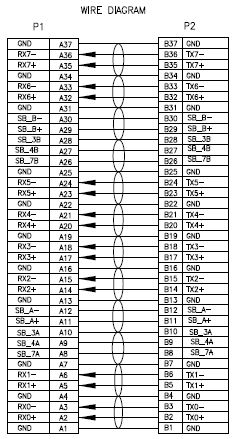

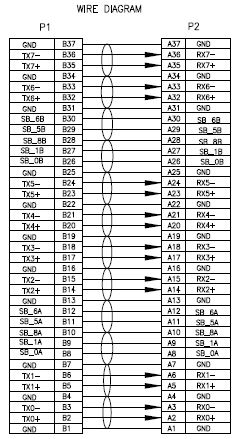

Pin Assignment:
