Technical Specifications

SlimSAS 4i (SFF-8654 38P) plug & SATA 7pin Plug to U.2 Receptacle (SFF-8639 68P) Cable with Power

  • Upstream: SlimSAS 4i (SFF-8654 38P) Plug & SATA 7pin Plug
  • Downstream: U.2 Plug (SFF-8639 68P) Receptacle Port
  • Power: SATA 15pin Male Connector
  • SAS Cable: UL22258, 30AWG, 85ohm, PCIe Gen 5
  • SFF-9402 Reference Multi-Protocol Internal Cables for SAS and/or PCIe
    • For SAS-4 (SFF-8654)/ Other Protocol (SFF-8654) x4 Connections only

Connector:

SlimSAS 4i (SFF-8654 38P) Plug

SATA 7pin Plug

U.2 Receptacle (SFF-8639 68P) Receptacle Port

Part No. LENGTH AWG ohm
CB-S0064-A50 SFF-8639 68P to SFF-8654 38P : 500mm

30

85

SFF-8639 68P to SATA 7pin : 500mm 30 100
SFF-8639 68P to SATA 15pin Power: 300mm 18

Connector Pin assignment and Cable Assembly Wiring:

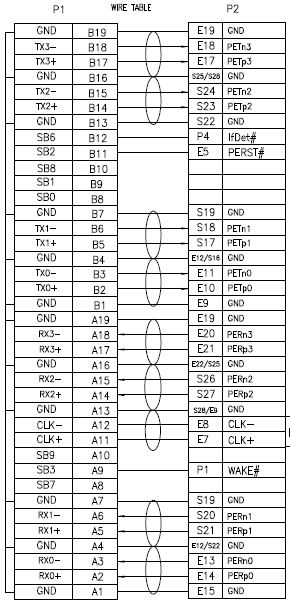

P1: SlimSAS 4i (SFF-8654 38P) to P2: U.2 Receptacle (SFF-8639 68P) Cable Assembly Wiring

P3: SATA 15 pin Male to P2: U.2 Receptacle (SFF-8639 68P) Receptacle Port Cable Assembly Wiring

P4: SATA 7pin Plug to P2: U.2 Receptacle (SFF-8639 68P) Receptacle Port Cable Assembly Wiring
