PCIe Gen 3/Gen 4 External Mini-SAS HD (SFF-8644) 4i plug to External Mini SAS HD (SFF-8644) 4i plug 100ohm Cable
- Compliant to PCI-SIG PCI Express External Cable Specification
- Cable: 30AWG, 100ohm, 12Gbps
Connector:
External Mini-SAS HD 4i 36pin (SFF-8644)
Length:
| Part No. | LENGTH | AWG | Differential Impedance |
CB-S0067-B05 |
0.5M | 30 | 100Ω |
CB-S0067-B10 |
1M | 28 | 100Ω |
CB-S0067-B20 |
2M | 28 | 100Ω |
CB-S0067-B30 |
3M | 28 | 100Ω |

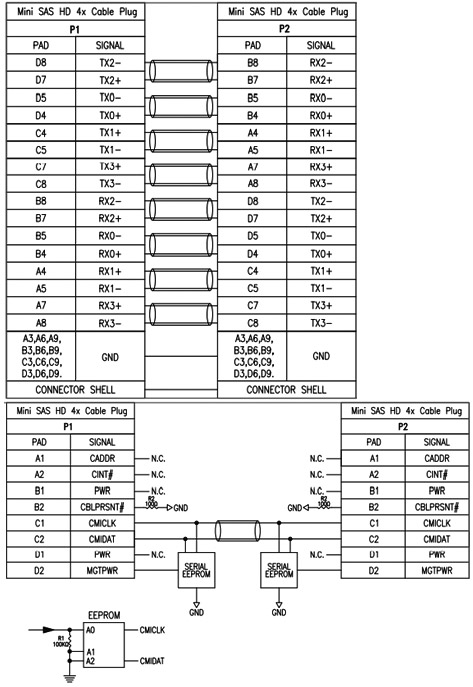

Pin Assignment:
