Highlights
  • PCIEX16E-16S is integrated by the following three key parts:
    • IPCIE16XCA03A
    • IPCIE16XD11
    • Four CB-S0036
Introduction

PCIEX16E-16S is PCIe x16 edge connector to PCIe x16 Slot Interconnect Cabling solution. PCIEX16E-16S is integrated by the following three key parts:

  • IPCIE16XCA03A---PCIe x16 Edge Connector to Four SFF-8654 4x Connectors Cable Adapter Card (Type A)
  • IPCIE16XD11---Four SFF-8654 4x to PCIe x16 Slot Adapter board
  • Four CB-S0036---SFF-8654 4x plug to SFF-8654 4x plug Cable, L=30cm ~ 80cm

PCIe x16 Edge Connector (EC) & PCIe x16 Slot Transmitter Differential Pair Pins and Receiver Differential Pair Pins

Wiring Diagram

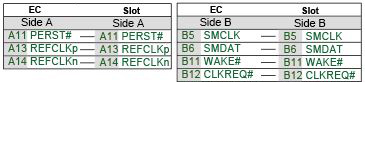

PCIe x16 Edge Connector (EC) & PCIe x16 Slot Auxiliary Signals Pins

Wiring Diagram


Technical Specifications

IPCIE16XCA03A

Upstream host port
  • PCIe x16 Edge Connector

PCIe Cable Port
  • Four SFF-8654 4x Connectors
    • 85ohm 38pin
Dimensions
  • 24.4x150.37mm
  • NW: 38.6g

IPCIE16XD11

PCIe Cable Port
  • Four SFF-8654 4x Connectors
    • 85ohm, 38pin
    • 4-Lane PCIe

Downstream slot port
  • PCIe x16 Slot Metal-Reinforced SMT Type

Power connector
  • One SATA 15pin power connector (Supply 12V & 3.3V for PCIe Slot)
  • Two JST Compatible 2pin Wafer (Supply 3.3Vaux Power for PCIe Slot)
Dimensions
  • 150x40mm
  • NW: 33.8g


Computer Platform
  • Desktop computer equipped with a PCIe x16 slot
Application

PCIe X16 edge connector to PCIe x16 Slot Solutions
Kit includes

PCIEX16E-16S-xx

  • IPCIE16XCA03A---PCIe x16 Edge Connector to Four SFF-8654 4x Connectors Cable Adapter Card (Type A)
  • IPCIE16XD11---Four SFF-8654 4x to PCIe x16 Slot Adapter
  • xx Four CB-S0036---SFF-8654 4x plug to SFF-8654 4x plug Cable, L=30cm ~ 80cm
    • 03--30cm
    • 05--50cm
    • 65--65cn
    • 80--80cm
