Highlights
  • PCIEX16E-844E is integrated by the following three key parts:
    • QIP4X-PCIE16XB03
    • Three IPCIE16XCA03B
    • Four CB-S0036
Introduction

PCIEX16E-844E is PCIe x16 edge connector to one PCIe x16 (x8 mode) & two PCIe x16 (x4 mode) edge connectors Interconnect Cabling solution.PCIEX16E-844E is integrated by the following three key parts:

  • QIP4X-PCIE16XB03---Internal PCIe (four SFF-8654 4x) to PCI Express x16 Bifurcation Adapter Card
  • Three IPCIE16XCA03B---PCIe x16 Edge Connector to Four SFF-8654 4x Connectors Cable Adapter Card (Type B)
  • Four CB-S0036---SFF-8654 4x plug to SFF-8654 4x plug Cable, L=30cm ~ 80cm

PCIe x16 Edge Connectors

  • QIP4X-PCIE16XB03 (EC1)
  • IPCIE16XCA03B (EC2)
  • IPCIE16XCA03B (EC3)
  • IPCIE16XCA03B (EC4)

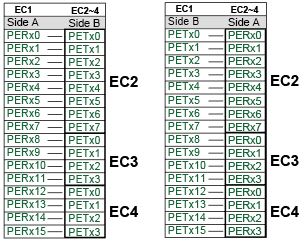

PCIe x16 Edge Connector (EC1 & EC2, EC3, EC4) Transmitter Differential Pair Pins and Receiver Differential Pair Pins

Wiring Diagram

PCIe x16 Edge Connector (EC1 & EC2, EC3, EC4) Auxiliary Signals Pins

Wiring Diagram


Technical Specifications

QIP4X-PCIE16XB03 / IPCIE16XCA03B

PCIe Port
  • PCIe x16 Edge Connector

Internal PCIe Port

  • Four SFF-8654 4x 85ohm 38pin Connectors
Computer Platform
  • Desktop computer equipped with a PCIe x16 slot
Physical Dimensions
  • 24.4(H)x150.37(L)mm
  • NW: 38.6g
Kit includes

PCIEX16E-844E-xx

  • QIP4X-PCIE16XB03---Internal PCIe (four SFF-8654 4x) to PCI Express x16 Bifurcation Adapter Card
  • Three IPCIE16XCA03B---PCIe x16 Edge Connector to Four SFF-8654 4x Connectors Cable Adapter Card (Type B)
  • xx Four CB-S0036---SFF-8654 4x plug to SFF-8654 4x plug Cable, L=30cm ~ 80cm
    • 03--30cm
    • 05--50cm
    • 65--65cn
    • 80--80cm
