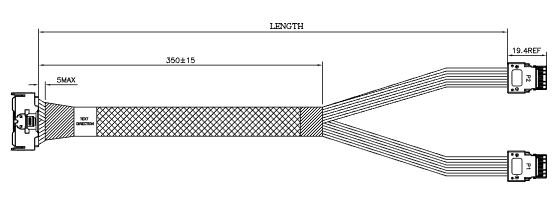

MCIO 8x plug to two SlimSAS 4i 38pin (SFF-8654) plug Y-Cables
- Upstream: MCIO 8x Plug 74P (SFF-TA-1016)
- Downstream: SlimSAS 4i 38pin (SFF-8654) Plug
Connector:
MCIO 8x plug
SlimSAS 4i 38pin (SFF-8654)
plug
Part No. |
LENGTH |
AWG |
ohm |
CB-S0083-C30-030 |
0.3M |
30 |
90ohm |
CB-S0083-C30-050 |
0.5M |
30 |
90ohm |
CB-S0083-C30-075 |
0.75M |
30 |
90ohm |
CB-S0083-C30-080 |
0.8M |
30 |
90ohm |
CB-S0083-C30-100 |
1M |
30 |
90ohm |

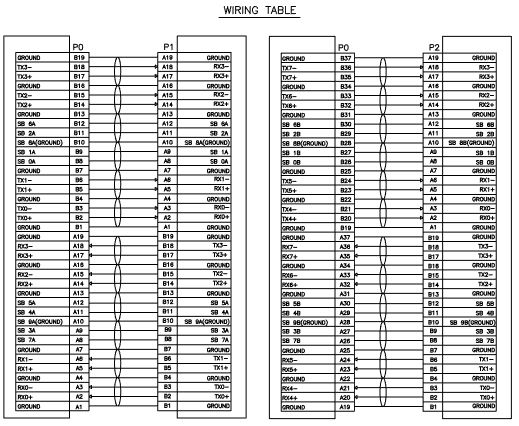

Connector Pin assignment and Cable Assembly Wiring:
Cable Assembly Wiring
|
