MCIO 8x plug to SlimSAS 8i 74pin (SFF-8654) plug Cable
- Upstream: MCIO 8x Plug 74P (SFF-TA-1016)
- Downstream: SlimSAS 8i Plug 74pin (SFF-8654)
Connector:
MCIO 8x plug
SlimSAS 8i 74pin (SFF-8654) plug

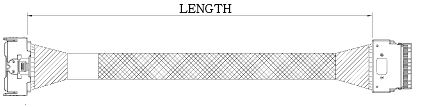

| Part No. | LENGTH | AWG | ohm |
| CB-S0084-C30-030 | 0.3M | 30 | 85ohm |
| CB-S0084-C30-050 | 0.5M | 30 | 85ohm |
| CB-S0084-C30-060 | 0.6M | 30 | 85ohm |
| CB-S0084-C30-080 | 0.8M | 30 | 85ohm |
| CB-S0084-C30-100 | 1M | 30 | 85ohm |

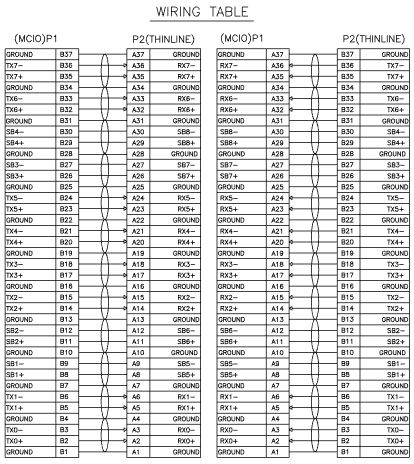

Connector Pin assignment and Cable Assembly Wiring:
Cable Assembly Wiring
