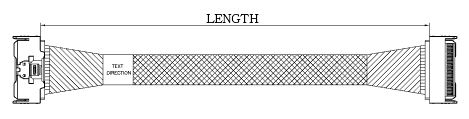

MCIO 8x plug to MCIO 8x plug Cable

• Upstream: MCIO 8x Plug 74P (SFF-TA-1016)
• Downstream: MCIO 8x Plug 74P (SFF-TA-1016)

Connector:

MCIO 8x plug

CB-S0080-B Series

CB-S0080-C Series

Part No.	LENGTH	AWG	ohm
CB-S0080-B29-020	0.2M	29	85ohm
CB-S0080-B29-030	0.3M	29	85ohm
CB-S0080-B29-040	0.4M	29	85ohm
CB-S0080-B29-050	0.5M	29	85ohm
CB-S0080-B29-060	0.6M	29	85ohm
CB-S0080-B29-070	0.7M	29	85ohm
CB-S0080-B29-080	0.8M	29	85ohm
CB-S0080-C30-020	0.2M	30	85ohm
CB-S0080-C30-030	0.3M	30	85ohm
CB-S0080-C30-040	0.4M	30	85ohm
CB-S0080-C30-050	0.5M	30	85ohm
CB-S0080-C30-060	0.6M	30	85ohm
CB-S0080-C30-080	0.8M	30	85ohm
CB-S0080-C30-100	1M	30	85ohm

Connector Pin assignment and Cable Assembly Wiring:

Cable Assembly Wiring
