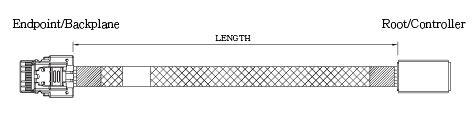

SFF-8643 4i to SFF8654 4i Cable

Connector:

Mini-SAS HD 36pin (SFF-8643) : Up Facing port to Root/Controller

SlimSAS 4i 36pin (SFF-8654) : Down Facing port to Endpoint/Backplance

Length:

Part No.	LENGTH	AWG	ohm
CB-S0088-C30-020	200mm	30	85ohm
CB-S0088-C30-030	300mm	30	85ohm
CB-S0088-C30-050	500mm	30	85ohm
CB-S0088-C30-060	600mm	30	85ohm
CB-S0088-C30-070	700mm	30	85ohm
CB-S0088-C30-080	800mm	30	85ohm
