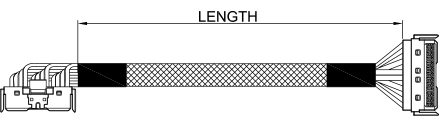

MCIO 8x plug to MCIO 8x Right Side-exit plug Cable
- Upstream: MCIO 8x Straight Plug 74P (SFF-TA-1016)
- Downstream: MCIO 8x Right Side-exit Plug 74P (SFF-TA-1016)
Connector:
MCIO 8x plug
| Part No. | LENGTH | AWG | ohm |
| CB-S0097-D30-200 | 20cm | 30 | 85ohm |
| CB-S0097-D30-300 | 30cm | 30 | 85ohm |
| CB-S0097-D30-400 | 40cm | 30 | 85ohm |
| CB-S0097-D30-500 | 50cm | 30 | 85ohm |
| CB-S0097-D30-600 | 60cm | 30 | 85ohm |
| CB-S0097-D30-700 | 70cm | 30 | 85ohm |
Connector Pin assignment and Cable Assembly Wiring:
Cable Assembly Wiring
