Technical Specifications

PCIe CEM Cable, PCIe x16 Slot to two MCIO 8x (SFF-TA-1016) Plug Cables (30AWG 85ohm) & Mini-Fit 6pin Power Plug Cable (18AWG)

Connectors:

Connectors:

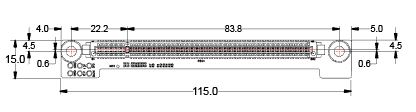

  • PCIe x16 Slot (EP)

  • MCIO 8x (SFF-TA-1016) Plug (RC)

  • Mini-Fit 6pin Power Plug (12V&3.3V&3.3Vaux DC Input for PCIe Slot Power Rail)
Pin 1 12V Pin 4 3.3V
Pin 2 GND Pin 5 GND
Pin 3 3.3Vaux Pin 6 NC

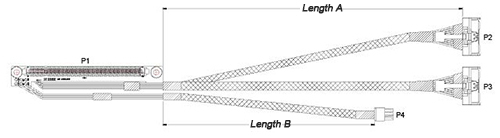

Length:

Part No. Length A (MCIO) Length B (Power)
P16S2-5260260A 60cm 60cm
