Technical Specifications

PCIe CEM Cable, Two PCIe x16 Slot (x4 mode) to SFF-8654 8x Plug Cable (30AWG 85ohm) & Mini-Fit 6pin Power Plug Cable (18AWG)

Connectors:

  • PCIe x16 Slot (EP)

  • SFF-8654 8x Plug (RC)

  • Mini-Fit 6pin Power Plug (12V&3.3V&3.3Vaux DC Input for PCIe Slot Power Rail)
Pin 1 12V Pin 4 3.3V
Pin 2 GND Pin 5 GND
Pin 3 3.3Vaux Pin 6 NC

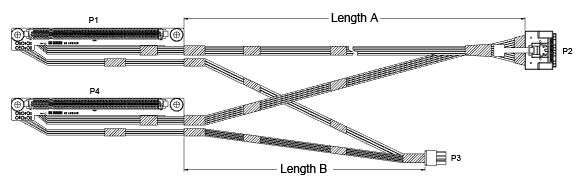

Length:

Part No. Length A (SFF-8654) Length B (Power) Note
DP16S2-3160260A 60cm 60cm A8 pin-NC
DP16S2-3150250A 50cm 50cm A8 pin-NC
