Introduction

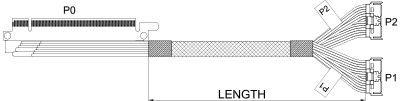

CB-00806 is Two MCIO 8x Plugs to PCIe x16 Edge Connector Right Side Exit Cable.

Connector

Controller/Root side: Two MCIO 8x Plug

Backplane/Endpoint side: PCIe x16 edge connector (gold finger)

Length

Part No. LENGTH AWG ohm
CB-00806-50 50cm 30 85


Related Products

  • PCIEX16D03-4A PCIe x16 to two PCIe x16 (x8 mode) Slots Expansion Docking Board

  • PCIEX16D05-5S PCIe x16 to four PCIe x16 (x4 mode) Slots Expansion Docking Board

  • DIP8X-PCIE16XB21 Internal PCIe (two MCIO 8x) to PCI Express x16 Bifurcation Riser Card
