Introduction

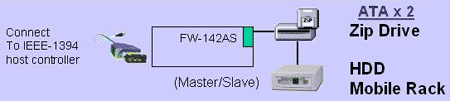

FWEIDE525D-3 is a Dual Bay (5.25 inch + 3.5 inch) FireWire (IEEE 1394a) to IDE x 2 (Master and Slave) Enclosure (w/ FW-142ASCi and DB-525FW)

FWEIDE525D-3 is ideally suited for tailgate interface applications for removable-media drives - CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-RAM, tape drive, and hard disk drive. It allows IDE drives to be connected to a 1394 serial bus in a plug-and-play fashion. Both ATA and ATAPI devices are supported using the same firmware.

Technical Specifications
  • FireWire interfaces available
  • Transfer speeds up to 100/200/400 Mbps
  • Plug and Play/Host Swapping capability
  • No jumper pins or ID settings
  • Provide one 5.25" and one 3.5" device bays
  • Support most types of IDE storage devices
  • One FireWire (IEEE 1394a) 6pin connector in the rear panel and one FireWire (IEEE 1394a) 6pin connector in the front panel
  • Built-in 80W power supply/Universal auto-switching 90-240V AC
  • Built-in 80x80 mm cooling fan
Applications
  • Data Backup

  • DVD Copier

  • Data Storage

Hardware Requirements
  • Desktop PC: with either a built-in Firewire (IEEE 1394) port or a Firewire (IEEE 1394) to PCI Host Adapter.
  • Notebook PC: with either a built-in Firewire (IEEE 1394) port or a Firewire (IEEE 1394) to CardBus PC Card.
Operating System Support
  • Windows 98 SE/ME/2000/XP/Vista/7; MacOS 9.1 or higher
  • Apple FireWire driver set 2.3 or higher
Kit includes
  • FWEIDE525D-3 enclosure
  • AC Power Core (2.0m length)
  • FireWire 6pin-to-6pin cable (1.0m length)
  • Installation guide
  • 1-YEAR WARRANTY
