Introduction

ESATAU2ATA25B01 is an eSATA & USB 2.0 to ATA Enclosure for 2.5" HDD. This newly designed product uses the most advanced eSATA & USB 2.0 to ATA bridge controller. Its unique security feature (access to drive with password) provides protection to your data in the HDD. In addition, the good power control design provides long-lasting life cycle for the HDD.

ESATAU2ATA25B01 is the perfect solution for data backup and transferring of data between computers and external mobile storage.

Technical Specifications
  • Anodized Aluminum Design
    • Two colors ( silver & black ) for choice
  • USB 2.0 :
    • Supports bus-power
    • Connector Type: Standard mini B Type
  • Serial ATA :
    • Connector Type: eSATA port
  • Indicator LED :
    • Equipped with USB Power Indicator LED (Red) and HDD Power & Access Indicator LED(Green)
    • Green LED:
      On HDD Power On
      Blinking HDD Access
    • Red LED:
      Off Suspended, Disconnected, Disabled,
      or Not Configured
      On USB Power On
  • Support 2.5" ATA HDD
  • Bootability
    • Enable to boot from either USB or SATA.
  • Standby Immediate
    • Transition to low power state by Standby immediate command.
  • EnergyStar (No Power Switch Needed) :
    • The power of 2.5" HDD will be removed when computer
      enters "Sleep" or "Standby" state
    • Resume the computer will bring 2.5" ATA HDD to
      power-on condition automatically
    • Dismounting "USB Mass Storage Device" will turn off
      the power of the 2.5" ATA HDD automatically
    • Shut down the computer will turn off the power of the
      2.5" ATA HDD automatically
  • Security --- Control of access to drive with password.
    By using SCSI Through ATA (Vendor specific SCSI command) to issue the ATA command for HDD security.
  • One-Button Backup
    • Press the button for 1 second will trigger data backup
      • Auto backup your data
      • Easy recovery your data
Kit includes
  • Enclosure
  • Bridge Board
  • Rear Panel

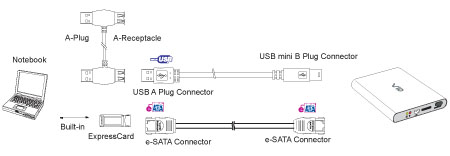

  • A -to- mini B type USB 2.0 cable in length of 1.0m length.
  • USB Bus Power Link Cable (CB-00294)
  • eSATA to eSATA cable in length of 1.0m length (CB-00296)
  • Screws
  • Installation Guide
  • Protection Bag
  • CD-tilte (Driver for Windows 98/98SE, Backup Software)
