Introduction

eSATA Front Connect is a extension cable (with metal frame) which will connect Internal SATA Port to the Front panel of the Computer.

eSATA Front Connect will allow user to plug and play SATA device from the front panel of the computer.

The eSATA Front Connect is designed to fit the dimension of 3.5" Floppy Disk Drive bay of the computer case.

DB-35ESDC1205 equipped with a DCS3-1205 power switch.

DCS3-1205 power switch will repeat the 12V & 5V DC power from PC internal SMPS (Switching Mode Power Supply) for supplying outside SATA and ATA drives.

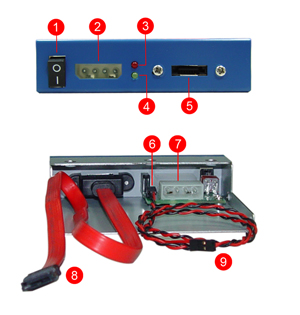

  1. Power Switch
  2. DC Output: IDE big 4pin male power connector
  3. Power LED
  4. eSATA Access LED
  5. eSATA Port
  6. LED pin Header: Connecting to the activity LED of SATA Host
  7. DC Input: IDE big 4pin male power connector
  8. eSATA (receptacle) to SATA plug Cable
  9. LED Cable
Hardware Requirements
  • eSATA Front Connect
    • Desktop PC: with either a built-in Serial ATA (SATA) controller or a Serial ATA (SATA) to PCI Host Adapter equipped with a internal Serial ATA (SATA) port.
      (SATA2-PCIE1X21)
Kit includes
  • Kit 1 :
    • DB-35ESDC1205 eSATA Front Connect
    • Screws (pan head M3x5, driver cross)
    • Easy Installation Guide
  • Kit 2 :
    • DB-35ESDC1205 eSATA Front Connect
    • Screws (pan head M3x5, driver cross)
    • Easy Installation Guide
    • CB-00442---M-Shape DC Power Cable (Red, Black, Black, Yellow) with power connectors (one FDD like mini 4pin, one SATA 15pin power plug and two IDE big 4pin female plug).

  • Option
    • SATA2-PCIE1X21
