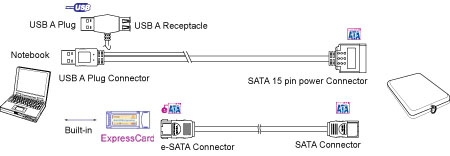

Two key components
1). D-Pod.
2). Single Port Serial ATA II to ExpressCard
1). D-Pod
2). Single Port Serial ATA II to ExpressCard
- Compliance
- Compliant with Serial ATA AHCI (Advanced Host
Controller Interface) Spec. Revision 1.0
- Compliant with Bus Master Programming interface
for IDE ATA Controllers Revision 1.0
- Compliant with PCI Express Bus Spec. Revision
1.0a
- Compliant with Serial ATA High Speed Serialized
AT Attachment Spec. Revision 1.0a
- Compliant with Serial ATA II: Extensions to Serial
ATA 1.0a Revision 1.1
- Compliant with Gen2i and Gen2m Serial ATA II:
Electrical Spec. Revision 1.0
- PCI Express Features
- Supports 1-lane 2.5 Gb/s PCI Express
- Internal native interface to 1-port
- All registers accessible in unified memory space
- Supports a slave SMBus interface (follow System
Management Bus Specification Revision 1.1)
- Serial ATA Features
- Supports Serial ATA Generation 2 transfer rate
of 3.0 Gb/s
- Supports SATA II Gen2i and Gen2m (External SATA
Connection, eSATA)
- Supports Native Command Queuing (NCQ)
- Supports Hot Plugging
|
