Highlights
  • 32-bit PCI Host interface
  • One Bilingual (1394b) connectors (with screw lock)
  • Two S400B CAT5 Ports (with screw lock)
  • Big IDE 4-pin DC Power Connector for supplying power to the 1394 Bus
Introduction

FWB-PCI3205 is a three port FireWire 800 (IEEE-1394b) to PCI Host Adapter featuring Texas Instruments
TSB83AA23 IEEE Std 1394b-2002 PHY and OHCI Link Device.

The FWB-PCI3205 is an IEEE Std 1394b-2002 link-layer design and physical layer (PHY) design combined
in a small P.C.B (Printed Circuit Board) to meet the demanding requirements of today’s 1394 bus applications.

The FWB-PCI3205 is capable of exceptional 800-Mbps performance; thus, providing the throughput and
bandwidth to move data efficiently and quickly between the PCI and 1394 buses.

The FWB-PCI3205also provides outstanding ultralow power operation and intelligent power-management capabilities. The device provides the IEEE 1394 LLC function and PHY function and is compatible with 100-Mbps, 200-Mbps, 400-Mbps, and 800-Mbps serial-bus data rates.
Technical Specifications
Host Bus:
  • 33-MHz/32-Bit PCI Interface
  • 3.3-V and 5-V PCI Signaling Environments
IEEE 1394 Std Support:
  • Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates
  • Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
  • Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 1394
1394 Bus Transfer Rate:

Provides three fully backward-compatible, (IEEE Std 1394a-2000 fully compliant) Bilingual IEEE Std 1394b-2002 cable ports at S100/S200/S400/S400B/S800 megabits per second (Mbits/s).

IEEE-1394 to PCI Controller

Texas Instruments TSB83AA23

DV and DA Enhancement:
  • Digital Video and Audio performance enhancements.
  • Extended resume signaling for compatibility with legacy DV components.
Power Management :

Power-down features to conserve energy in battery-powered applications include: automatic device power down during suspend, PCI power management for link-layer, and inactive ports powered down
Number of ports: One Bilingual (1394b) connectors (with screw lock)+Two RJ45 Ports(S400B)(with screw lock)
Bus Power Connector:

Big IDE 4-pin DC Power Connector

Pin assignment of
RJ45 Connector:

Pin assignment of the RJ45 connector is compatible with 100baseT Ethernet (pin1,2,3,6). Users can use the crossover type Cat5e or Cat6 cable.

Pin Signal
1 TPB
2 TPB*
3 TPA
4
5
6 TPA*
7
8

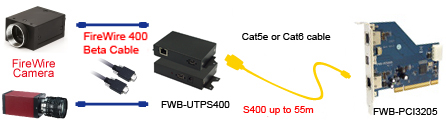

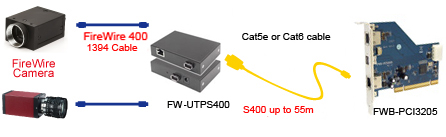

Application

Operating System Requirements
  • The 1394b function (host driver) is supported (built in) by the following OS:
    • Windows 2000 SP4 or later
    • Windows XP SP2 or later
    • Windows Vista SP1 or later
    • Windows 8 and 8.1
    • Mac OS 10.4 or later
    • Linux kernel 2.6.23 or later.
Certifications
