Highlights
  • Host Bus: 32-bit 32/66 MHz PCI
  • SATA I 1.5 Gbps (150MB/s)
  • Compliant with SATA 1.0 Specification
  • Four independent Serial ATA channels (Multilane SATA 4X Connector)
  • Supports Plug and Play
  • Supports ATAPI devices: CD-ROM, DVD-ROM, etc.
  • Provides Non-RAID BIOS
  • Low Profile PCI Form Factor
Introduction

SATA-PCI10-IE is a Multilane 4X SATA to PCI Host Adapter. It can be used to control four independent Serial ATA channels. Each channel has its own Serial ATA bus and will support one Serial ATA device. SATA-PCI10-IE supports a 32-bit 66 MHz PCI bus and the Serial ATA Generation 1 transfer rate of 1.5 Gb/s (150 MB/s).

SATA-PCI10-IE is a cost-effective solution for applications that need to accommodate storage peripherals with the new Serial ATA interface. Any system with a PCI bus interface can simply add the Serial ATA interface by adding a card with the SATA-PCI10-IE and loading the driver into the system.
The SATA-PCI10-IE comes complete with drivers for Windows 98, Windows Millennium, Windows NT 4.0, Windows 2000, XP, Netware and Linux.
Technical Specifications

PCI Host Bus

  • Supports 32-bit, 33/66Mhz
  • Compliant with PCI Specification, Revision 2.3
  • 48-bit sector addressing
  • Four Independent DMA channels with 256-byte FIFOs per channel
  • Virtual DMA in PCI with serial link in legacy PIO mode
  • Low-Profile PCI Form factor

SATA Feature
  • Serial ATA (SATA) --- 1.5 Gbps (150MB/s)
  • Compliant with Serial ATA 1.0 Specifications
  • 48-bit sector addressing
  • Supports command buffering for ATA TF shadow registers
  • Supports four independent Serial ATA channels
  • Supports Spread Spectrum clocking to reduce EMI
  • Supports ATAPI devices: CD-ROM, DVD-ROM, etc.
  • Supports SATA active signal for 4 separate LEDs
  • Hot-plug capable
Applications

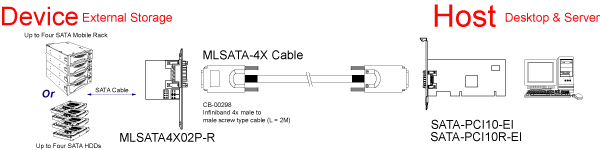

MLSATA4X02P-R: Multilane 4x SATA Adapter
MLSATA-4X: Infiniband Multilane 4X Cable
Operating System Requirements
  • Windows 98/ME/NT4.0/2000/XP/2003/Vista 32-bit
  • Windows XP/2003/Vista 64-bit
  • Red Hat Linux 8.0, 9.0, SuSE Linux 8.1, 8.2 and United Linux 1.0
  • Drivers:
    • Non-RAID serial ATA drivers BIOS: V.5.4.0.3
      • Windows 98/ME/NT4.0/2000/XP/2003/Vista 32-bit
      • Windows XP/2003/Vista 64-bit
      • Linux Kernel 2.4.18-14 or later.
