Highlights
  • One USB 3.0 Host Port
  • Compliant with Universal Serial Bus 3.0 specification
  • ExpressCard/34mm standard Size (75x34x5mm)
  • Designed with Renesas uPD720200A (USB3.0 Certified TID: 380000013)
Introduction

The U3-EC34G201S is an USB3.0 to ExpressCard Host Card.

The U3-EC34G201S complies with Universal Serial Bus 3.0 Specification, and Intel’s eXtensible Host Controller Interface (xHCI).

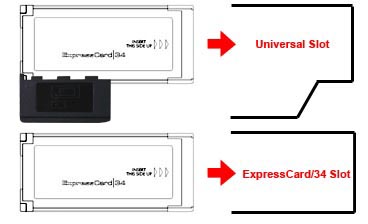

The U3-EC34G201S uses an ExpressCard bus interface, and it is applicable for NoteBook equipped with ExpressCard/34 or Universal slot.

The U3-EC34G201S supports data transfer up to 5 Gbps when connecting to USB 3.0 compliant peripherals, while maintaining compatibility with existing USB peripheral devices.
Technical Specifications

PCIe Host Bus
  • Compliant with PCI Express Base Specification 2.0
  • Supports PCI Express Card Electromechanical Specification Revision 2.0
  • Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification revision 0.96
  • Supports PCI Bus Power Management Interface Specification revision 1.2
  • Operational registers are direct-mapped to PCI memory space
  • Supports Serial Peripheral Interface (SPI) type ROM

USB Features

  • Supports one downstream port at all speeds
  • Supports all USB compliant data transfer types as follows; Control / Bulk / Interrupt / Isochronous transfer
  • Supports USB legacy functions
  • USB3.0 PHY for super-speed Tx/Rx
USB Data Transfer Rate:
  • Low-speed (1.5 Mbps)
  • Full-speed (12.0 Mbps)
  • High-speed (480.0 Mbps)
  • Super-speed (5.0 Gbps)
Number of Ports:
  • One USB Host port

Auxiliary USB Bus Power Input:
  • Walkman-type 0.65 mm DC Jack
Computer Platfrom
  • NoteBook equipped with ExpressCard/34 or Universal slot
Physical Dimensions
  • 75(D) x 34(W)mm
  • NW: 17.5g
Operating System Requirements
  • Windows XP, Windows Vista, Windows 7
  • USB 3.0 Host Controller Driver Kit (x86 and x64)
    • For Windows XP, Vista and 7
Certifications
  • CE Test: Pass
  • FCC Test : Pass
  • RoHS Test : Pass



Kit includes
  • U3-EC34G201S
  • ExpressCard 34mm to 54mm Stabilizer Adapter
  • CB-00540---USB A-Plug to DC plug (0.65mm) Power Cable
  • Driver CD
