• Active (with Gen 2 Redriver) PCIe x8 Gen2 Cable Adapter
• Two 4-Lane External PCIe Cable Connectors (0.8mm pitch 38pin iPass™)
• 4-Lane External PCIe Application: Single Cable
• 8-Lane External PCIe Application: Two Cables
• Up to 40Gbps 8-Lane PCIe® 2.0 Serial ReDriverTM
• I2C Configuration Controls (3.3V tolerant)
• Adjustable Receiver Equalization and Transmitter De-emphasis and Output Levels

EPCIE8XRDCA01-G2 is External PCI Express x8 (with Gen 2 Redriver) Cable Adapter Card, it requires no additional software or drivers to operate.

Designed to overcome the limited PCIe connectivity of most desktop computers, the EPCIE8XRDCA01-G2 can be quickly and easily set up for external expansion.

It provides programmable equalization, amplification, and de-emphasis by using 8 select bits, to optimize performance over a variety of physical mediums by reducing Inter-symbol interface. The integrated equalization circuitry provides flexibility with signal integrity of the PCI Express signal before the Redriver, whereas the integrated de-emphasis circuitry provides flexibility with signal integrity of the PCI Express signal after the Redriver.

EPCIE8XRDCA01 can be quickly and easily set up for external expansion.

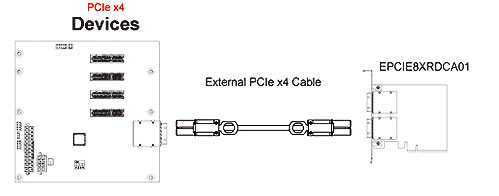

4-Lane External PCIe Application: Single Cable

8-Lane External PCIe Application: Two Cables

• 38pin iPass™ (0.8mm pitch) compatible I/O Connector

Low Pin# Signal Pin# Signal A1 GND B1 GND A2 PETp0 B2 PERp0 A3 PETp0 B3 PERn0 A4 GND B4 GND A5 PETp1 B5 PERp1 A6 PETn1 B6 PERn1 A7 GND B7 GND A8 PETp2 B8 PERp2 A9 PETn2 B9 PERn2 A10 GND B10 GND A11 PETp3 B11 PERp3 A12 PETn3 B12 PERn3 A13 GND B13 GND A14 CREFCLKP B14 NC A15 CREFCLKn B15 NC A16 GND B16 GND A17 GND B17 GND A18 CPRSNT# B18 CWAKE# A19 CPWRON B19 CPERST#

High Pin# Signal Pin# Signal A1 GND B1 GND A2 PETp4 B2 PERp4 A3 PETp4 B3 PERn4 A4 GND B4 GND A5 PETp5 B5 PERp5 A6 PETn5 B6 PERn5 A7 GND B7 GND A8 PETp6 B8 PERp6 A9 PETn6 B9 PERn6 A10 GND B10 GND A11 PETp7 B11 PERp7 A12 PETn7 B12 PERn7 A13 GND B13 GND A14 NC B14 NC A15 NC B15 NC A16 GND B16 GND A17 GND B17 GND A18 NC B18 NC A19 NC B19 NC
