Highlights
  • External PCIe x16 8Gbps Active (Redriver with Linear Equalization) to PCIe x16 Cable Adapter
  • Support PCIe Gen 1/2/3 Protocol
  • Low Profile PCI Form Factor
  • 16-Lane External PCIe Cable Connector (0.8mm pitch 136pin iPass compatible)
  • There are two models available for different applications.
    • For Host: EPCIE16XRDCA01-H
    • For Target: EPCIE16XRDCA01-T
Introduction

EPCIE16XRDCA01 is External PCI Express x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card, it requires no additional software or drivers to operate.

Designed to overcome the limited PCIe connectivity of most desktop computers, the EPCIE16XRDCA01 can be quickly and easily set up for external expansion.

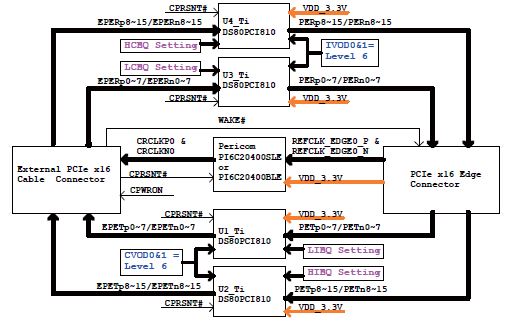

It provides programmable equalization by using select bits, to optimize performance over a variety of physical mediums by reducing Inter-symbol interface. The integrated equalization circuitry provides flexibility with signal integrity of the PCI Express signal before the Redriver, whereas the integrated de-emphasis circuitry provides flexibility with signal integrity of the PCI Express signal after the Redriver.

For Host: EPCIE16XRDCA01-H

For Target: EPCIE16XRDCA01-T


Technical Specifications
Number of Lane PCIe 16-Lane

External PCIe Connector

136pin iPass (0.8mm pitch) compatible I/O Connector
Computer Platform Requirements Desktop computer equipped with a PCIe 1.0/2.0/3.0 x16 slot
Power On Switch Wafer Connector; Pitch=2.54mm (only for EPCIE16XRDCA01-T)
Jumper
  • RX-Detect setting
    • Outputs test every 12ms for 600ms then stops
    • Outputs test every 12ms until detection occurs
  • Input Equalization level setting
    • LIEQ: PCIe 0~7 Input Equalizer Setting
      From Internal PCIe x16 Edge Connector (Side B) to U1
    • HIEQ: PCIe 8~15 Input Equalizer Setting
      From Internal PCIe x16 Edge Connector (Side B) to U2
    • LCEQ : PCIe 0~7 Input Equalizer Setting
      From External PCIe x16 Connector to U3
    • HCEQ: PCIe 8~15 Equalizer Setting
      From External PCIe x16 Connector to U4
      • Level EQA/EQB dB@
      1.25Ghz 2.50Ghz 4.00Ghz
      1 0 2.1 2.5 2.7
      2 R 4.0 5.1 6.4
      3 F 5.5 7.0 8.3
      4* 1 6.8 8.3 9.5
  • Present Detection
    • PRSNT2# from PCIe edge finger PRSNT1#
    • PRSNT2# from CON1 CPRSNT#
Physical Dimensions
  • Dimensions: 64.4mm(H) x 167mm(L)
  • NW: 105g
Available Models

For Host
EPCIE16XRDCA01-H

For Target
EPCIE16XRDCA01-T

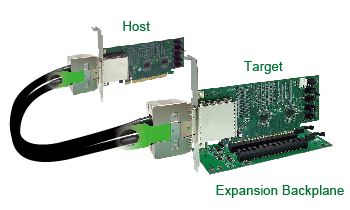

Application
  • Host to Target

PCIEX16D01---PCIe x16 Expansion Docking Board
Kit includes
  • EPCIE16XRDCA01
Optional Accessories
  • Low Profile PCI Bracket (S-BR-00194-06-1020)
  • Expansion Backplane (PCIEX16D01)
  • JST Wafer 2pin Cable; Pitch=2.5mm, 26AWG, , L=30cm (CB-00711)
