Highlights
  • Supports PCI Express Specification Revision 2.1 at 5GT/s
  • Single (x1) PCI Express Lane, Low-Profile Form Factor
  • Compliant with USB 3.0 Specification 1.0
  • Compliant with Extensible Host Controller Interface (xHCI) Specification revision 1.0
  • 4 downstream USB ports (2 External + 2 Internal) support SS/HS/FS/LS data rates
    (5Gbps/480Mbps/12Mbps/1.5 Mbps)
  • Compliant with USB Power Delivery Specification Revision 1.0
    • Supports PD Provider Mode only

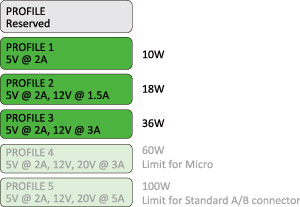

    • Supports PD Profile 0 ~ 3
    • Supports two USB 3.0 PD Standard-A ports
  • Supports USB 3.0 A Plug w/Jackscrew lock Cable
Introduction

The U3-PCIE1XG216PD is 4-port (2 External PD Ports & 2 Internal Ports) USB 3.0 to PCI Express x1 Gen 2 Host Card. It fully integrates an Extensible host Controller Interface (xHCI) engine, a 4-port 5Gbps USB 3.0 transceiver, a PCI Express endpoint controller and a 5Gbps PCI Express transceiver. U3-PCIE1XG216PD implements the Universal Serial Bus 3.0 Specification Revision 1.0 and the Extensible Host Controller Interface (xHCI) Specification Revision 1.0, and complies with the PCI Express Rev 2.1 Specification at 5Gbps data rate, and the PCI Local Bus Specification Revision 2.2. U3-PCIE1XG216PD is backward compatible for operation with USB 2.0 and USB 1.1 devices.

The U3-PCIE1XG216PD features GoXtream™ xHCI Accelerator Engine, which maps the xHCI standard directly into a set of parallel functional units, providing acceleration of all xHCI operations while maintaining compatibility with existing software driver models.

Compliant with USB Power Delivery Specification Revision 1.0

  • Supports PD Provider Mode only
  • Supports PD Profile 0 ~ 3
  • Supports two USB 3.0 PD Standard-A ports

Technical Specifications

PCIe Host Bus

  • Single (x1) PCI Express Lane
  • Supports PCI Express Specification Revision 2.1 at 5GT/s
  • Supports PCI Bus Power Management Interface Specification revision 1.2
  • Support for Latency Tolerance Reporting (PCIe)
USB Features
  • Compliant with USB 3.0 Specification Revision 1.0
  • Compliant with Extensible Host Controller Interface (xHCI) Specification revision 1.0
  • 4 downstream USB ports support SS/HS/FS/LS data rates (5Gbps/480Mbps/12Mbps/1.5Mbps)
  • Supports UASP (USB Attached SCSI Protocol)
  • Supports xHCI debug capability
  • Support for Ultra High-performance isochronous applications
  • Support for Latency Tolerance Tolerance Messaging (USB)
Advanced Power Saving
  • Support all USB 3.0 Power States: U0, U1, U2 and U3
  • Support USB 2.0 Link Power management (LPM)
    • USB-IF LPM PDK Standard
  • PCIe Active State Power Management (ASPM) L0s and L1
USB3 cable lock mechanism
  • Provides the threaded holes for the jack-screws of USB 3.0 A Plug w/Jackscrew lock Cable

USB Bus Power Input

Power supply to the USB bus power may from either Big IDE 4-pin or SATA 15-pin Power Connector

  • -A. From Big IDE 4-pin Power Connector
  • -S. From SATA 15-pin Power Connector
Number of Ports:
  • Two External USB 3.0 ports with Screw Holes for thumbscrew locking Type USB 3.0 Cable
  • USB 3.0 2-in-1 Internal Ports ( USB3 ICC A)

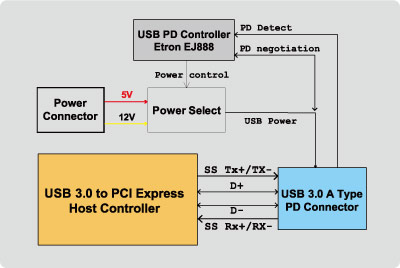

USB Power Delivery (Only for External ports)

  • Compliant with USB Power Delivery Specification Revision 1.0
    • Supports PD Provider Mode only
    • Supports PD Profile 0 ~ 3
    • Supports two USB 3.0 PD Standard-A ports
Available Models

U3-PCIE1XG216PD-A
With Big IDE 4-pin Power Connector

U3-PCIE1XG216PD-S
With SATA 15pin Power Connector

Computer Platform
  • Computer with PCI Express slot (x1, x4, x8, x16)
  • Note:
    For the best performance (5.0 Gbps), U3-PCIE1XG216PD should be installed in a PCIe Gen 2 compliant slot in the host computer.  Most computers have PCIe Gen 2 (5.0 Gbps) throughput on x8 or x16 slots.
    A PCIe Gen 1 compliant slot reaches up to 2.5 Gbps throughput.

Operating System Requirements
  • Windows XP, Windows Vista, Windows 7, Windows 8
  • Linux xHCI support under Linux kernel version 2.6.31 and after
  • USB 3.0 Host Drivers
    x86 (32-bit) and x64 (64-bit)
    • Windows XP
    • Windows Vista
    • Windows 7
    • Windows 8 and 8.1
Physical Dimensions
  • 64mm(H)x102mm(L)
  • NW: 55g
Kit includes
  • U3-PCIE1XG216PD
  • Driver CD
Optional Accessories
  • Low Profile PCI Bracket (BR-00194-08-1020)
