Highlights
  • Active (with Gen1/2/3 Redriver) PCIe x8 Cable Adapter
  • Two 4-Lane External PCIe Cable Connectors (0.8mm pitch 38pin iPass™)
    • 4-Lane External PCIe Application: Single Cable
    • 8-Lane External PCIe Application: Two Cables
  • Up to 64Gbps 8-Lane PCIe® 3.0 Serial ReDriver™
  • Pin Strap Configuration (Jumper Setting)
  • Adjustable Receiver Equalization and Transmitter De-emphasis and Output Levels
    • Transmit de-emphasis (up to 9 dB)
    • Transmit VOD (up to 1300 mVp-p)
    • Receive equalization (up to 36 dB)
Introduction

EPCIE8XRDCA01 is External PCI Express x8 (with Gen1/2/3 Redriver) Cable Adapter Card, it requires no additional software or drivers to operate.

Designed to overcome the limited PCIe connectivity of most desktop computers, the EPCIE8XRDCA01 can be quickly and easily set up for external expansion.

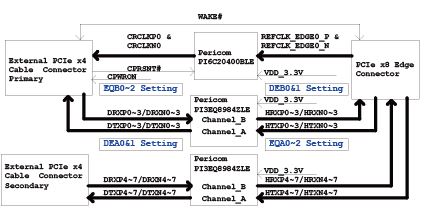

It provides per channel programmable equalization, output swing, de-emphasis, and amplifier gain. The programmable settings can be applied easily via jumper. The integrated equalization circuitry provides flexibility with signal integrity of the PCI Express signal before the Redriver, whereas the integrated de-emphasis circuitry provides flexibility with signal integrity of the PCI Express signal after the Redriver.
Technical Specifications



Number of Lane PCIe 8-Lane

External PCIe Connector
  • Two 38pin iPass™ (0.8mm pitch) compatible I/O Connectors
    • Scalability up to 10Gb/s
      • PCIe Gen I – 2.5Gb/s
      • PCIe Gen II – 5.0Gb/s
    • Durability - 250 cycles
    • Fully shielded to provide maximum EMI/RFI protection
      • Guide to system bezel gasket
      • Cable plug gasket to front face of Guide
    • First mate, last break
    • RoHS compliant
Computer Platform Requirements Desktop computer equipped with a PCIe 1.0/2.0/3.0 x8, x16 slot
Jumper
  • Output Swing setting
    VOD1 VOD0 VOD Vp-p
    0 0 0.8
    0 1 0.95
    1 0 1.15
    1* 1* 1.3*
    Note: 0: Short, 1: Open
  • Receiver Detection Control
    • Open: Enabled*
    • Short: Disable
  • Output De-emphasis setting
    DEMA1 DEMB1 DEMA0 DEMB0 DEM(dB)
    0 0 0
    0 1 -3.5
    1* 0* -6*
    1 1 -9

    Note:
    EDA1/0 0: Short 0-C, 1: Short C-1
    EDB1/0 0: Short, 1: Open

  • Equalization setting
    EQA2
    EQB2    		 EQA1
    EQB1    		 EQA0
    EQB0    		 dB@2.5GHz dB@4GHz
    0 0 0 2.4 4.2
    0 0 1 3.7 5.9
    0* 1* 0* 5.1* 7.7*
    0 1 1 6.5 9.3
    1 0 0 8.3 11.4
    1 0 1 10 13.2
    1 1 0 11.8 15.1
    1 1 1 13.6 16.9
    HIZ 0 0 15.5 18.9
    HIZ 0 1 17.4 20.8
    HIZ 1 0 19.3 22.8
    HIZ 1 1 21.2 24.7
    0 0 HIZ 23 26.5
    0 1 HIZ 25 28.5
    1 0 HIZ 27 30.5
    1 1 HIZ 29.1 32.6

    Note:
    EQB2/0 and EQA2/0 0: Short 0-C, 1: Short C-1, HIZ: Open
    EQB1 and EQA1 0: Short, 1: Open


Applications

EPCIE8XRDCA01 can be quickly and easily set up for external expansion.

4-Lane External PCIe Application: Single Cable

8-Lane External PCIe Application: Two Cables
Pin Assignment
  • 38pin iPass™ (0.8mm pitch) compatible I/O Connector
Low
Pin# Signal Pin# Signal
A1 GND B1 GND
A2 PETp0 B2 PERp0
A3 PETp0 B3 PERn0
A4 GND B4 GND
A5 PETp1 B5 PERp1
A6 PETn1 B6 PERn1
A7 GND B7 GND
A8 PETp2 B8 PERp2
A9 PETn2 B9 PERn2
A10 GND B10 GND
A11 PETp3 B11 PERp3
A12 PETn3 B12 PERn3
A13 GND B13 GND
A14 CREFCLKP B14 NC
A15 CREFCLKn B15 NC
A16 GND B16 GND
A17 GND B17 GND
A18 CPRSNT# B18 CWAKE#
A19 CPWRON B19 CPERST#
High
Pin# Signal Pin# Signal
A1 GND B1 GND
A2 PETp4 B2 PERp4
A3 PETp4 B3 PERn4
A4 GND B4 GND
A5 PETp5 B5 PERp5
A6 PETn5 B6 PERn5
A7 GND B7 GND
A8 PETp6 B8 PERp6
A9 PETn6 B9 PERn6
A10 GND B10 GND
A11 PETp7 B11 PERp7
A12 PETn7 B12 PERn7
A13 GND B13 GND
A14 NC B14 NC
A15 NC B15 NC
A16 GND B16 GND
A17 GND B17 GND
A18 NC B18 NC
A19 NC B19 NC

Physical Dimensions
  • 82(H)x107mm(L)
  • NW: 80g
External PCIe x4 Cable
Model No. AWG Length (Active) Performance
CB-00485-A0 28AWG 1.5m Gen2
CB-00485-A1 28AWG 1m Gen2
CB-00485-A2 28AWG 2.0m Gen2
CB-00485-A3 28AWG 3.0m Gen2
CB-00485-A4 28AWG 0.5m Gen2
CB-00485-A5 28AWG 4m Gen2
Kit includes
  • EPCIE8XRDCA01
