Highlights
  • 5.25" ODD Form Factor
  • Host Bus: PCIe x4 Gen 2 (20.0 Gb/s)
    • Compliant with PCI Express Base Specification Revision 2.0
  • Quad independent USB 3.0 Host Controllers
    • Compliant with Universal Serial Bus 3.0 specification Revision 1.0
    • Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.0
    • USB 3.0 Host Controller supports four downstream ports
  • Sixteen USB 3.0 Cable Ports (A-type Receptacle, USB IF TID 360000055)
    • Provides USB 3.0 cable port lock mechanism


    USB 3.0 Standard A-type lock mechanism

Introduction

The U3X4-PCIE4XE112 is an Quad channel 16-port (4-port x 4) USB 3.0 to PCI Express x4 Gen 2 Host Card.

U3X4-PCIE4XE112 is integrated by the following three key parts (IP4X-PCIE4XG201,DU3X2-IPCIE2XG211, CB-00592).

  • IP4X-PCIE4XG201
    • Internal four PCIe x1 to PCIe x4 Gen 2 Switch Host Card..
  • DU3X2-IPCIE2XG211 (U3X2-IPCIE2XG211 x 2pcs)
    • Four PCI Express x1 to USB 3.0 Single Chip Host Controllers ( FRESCO FL1100; USB IF TID 380000026).
  • Two CB-00592-01

Utilizing the standard PCI Express Switch, the 8-Lane/8-Port PCI Express Switch provides the most efficient fan-out solution for integrating Quad PCI Express to USB 3.0 Single Chip Host controllers into a small board design. Each USB 3.0 to PCI Express Single Chip Host controller takes advantages of 5 Gbps burst rate of 4-lane PCI Express bus in both directions and is fully compliant with PCI Express Base specification r2.0. This solution provides full PCI Express and USB 3.0 functionality and performance.



Technical Specifications

IP4X-PCIE4XG201

Upstream PCIe interface
  • 4-lane PCI Express
  • Throughput
    • PCIe Gen 1: 10 Gbps
    • PCIe Gen 2: 20 Gbps
Downstream PCIe interface
  • Two IOI Proprietary Dual-lane Internal PCIe Ports (PCIe-1~2)
    • 10X2_19pin Header (Pitch=2.0mm)
    • 2-Lane PCIe (Two PCIe x1)
  • Throughput of each lane
    • PCIe Gen 2: 5 Gbps
Key Features
  • Standards Compliant
    • PCI Express Base Specification r2.0 (Backwards compatible with PCIe r1.0a/1.1)
    • PCI Power Management Spec r1.2
    • Microsoft Vista Compliant
    • Supports Access Control Services
    • Dynamic link-width control
    • Dynamic SerDes Speed Control
  • High Performance
    • Non-blocking internal architecture
    • Full line rate on all ports
    • Cut-Thru latency: 140ns for Link widths of x4 to x1
    • Maximum Payload Size - 2,048 bytes
    • Read Pacing (intelligent bandwidth allocation)
    • Dual Cast
    • Dynamic Buffer Pool Architecture for faster credit updates
  • PCI Express Power Management
    • Link power management states: L0, L0s, L1, L2/L3 Ready, and L3 (with Vaux not supported)
    • Device power management states: D0 and D3hot
    • Active State Power Management (ASPM)
  • Quality of Service (QoS)
    • Two Virtual Channels (VC) per port
    • Eight Traffic Classes per port
    • Weighted Round-Robin Port & VC Arbitration

Lane Status LEDs

  • Blink: Gen 1 speed
  • Solid: Gen 2 speed
  • Upstream Lane Status LEDs
    • LED-Lane0: Upstream x1 Status LED
    • LED-Lane3: Upstream x4 Status LED
Computer Platform Requirements Desktop computer equipped with a PCIe 2.0/3.0 x4, x8, x16 slot
Physical Dimensions
  • 64.5(H)x81(L)mm
  • NW: 48.5g

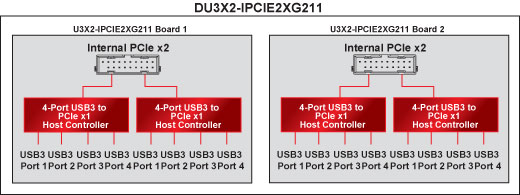

DU3X2-IPCIE2XG211

PCI Express
(IOI Proprietary)
  • Two Dual-lane Internal PCIe Ports (IOI Proprietary)
    • 10X2_19pin Header (Pitch=2.0mm)
    • PCIe x2 (Two PCIe x1)
  • Throughput of each lane
    • PCIe Gen 2: 5 Gbps
  • Compliant with PCI Express Base Specification Revision 2.0
USB Features
  • Compliant with USB 3.0 Specification Revision 1.0
  • Compliant with Extensible Host Controller Interface (xHCI) Specification revision 1.0
  • 16 downstream USB ports support SS/HS/FS/LS data rates (5Gbps/480Mbps/12Mbps/1.5Mbps)
  • Supports UASP (USB Attached SCSI Protocol)
  • Supports xHCI debug capability
  • Support for Ultra High-performance isochronous applications
  • Support for Latency Tolerance Tolerance Messaging (USB)
USB Data Transfer Rate
  • Low-speed (1.5 Mbps)
  • Full-speed (12.0 Mbps)
  • High-speed (480.0 Mbps)
  • Super-speed (5.0 Gbps)
Number of Ports

Sixteen USB 3.0 (Standard A-type Receptacle) cable ports (Provides USB 3.0 cable port lock mechanism)

USB Bus Power Input (5V & 12V)

Either Big IDE 4-pin DC Power Connector
or/and SATA 15pin Power Connector

Physical Dimensions
  • 5.25" ODD Form Factor
  • 146.6(W) x 42(H) x 109(D) mm
  • NW: 380g
Applications

Quad Channel 16-port USB 3.0 Host Controllers

  • U3X4-PCIE4XE112



Computer Platform
  • Computer with PCI Express slot (x4, x8, x16)

Note:
For the best performance (5.0 Gbps), It should be installed in a PCIe Gen 2 compliant slot in the host computer.  Most computers have PCIe Gen 2 (5.0 Gbps) throughput on x4, x8 or x16 slots.
A PCIe Gen 1 compliant slot reaches up to 2.5 Gbps throughput

Operating System Requirements
  • If OS is Windows 8 or later , there are inbox driver for Fresco USB 3.0 Host Controller.
  • Linux xHCI support under Linux kernel version 2.6.31 and after
  • USB 3.0 Host Drivers
    x86 (32-bit) and x64 (64-bit)
    • Windows XP
    • Windows Vista
    • Windows 7
    • Windows 8 and 8.1
Kit includes

U3X4-PCIE4XE112

  • IP4X-PCIE4XG201
  • DU3X2-IPCIE2XG211
  • Two CB-00592-01 --- Female 19pin to Female 19pin Cable, L=410mm
  • Driver CD
