Introduction

IPCIE8XCA01R is PCI Express x8 Pasive Slot Adapter, it requires no additional software or drivers to operate.

The IPCIE8XCA01R is an alternative solution in connection to the Mini SAS HD (SFF-8643) to PCIe x16 (x8 mode) Slot Board (IPCIED4XD02) for testing.

Technical Specifications
Primary PCIe Connector
  • PCIe x16 edge finger
  • Supports 8-lane PCI Express bandwidth

Secondary PCIe Connector

  • PCIe x16 slots
  • Supports 8-lane PCI Express bandwidth
Platform Requirements IPCIED4XD02 --- Mini SAS HD (SFF-8643) to PCIe x16 (x8 mode) Slot Board

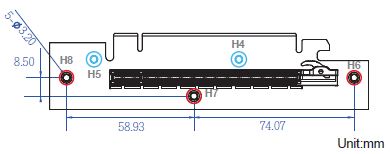

Tooling hole
(uint:mm)

H6~8: Tooling holes for IPCIE8XCA01R
H4~5: Tooling holes for IPCIED4XD02

Dimensions

30.82(W) x 147.49(D) mm
N.W: 28g
