Highlights
  • Internal PCIe (two SFF-8654 8x 74pin) to PCI Express x16 Bifurcation Riser Card
    • PCIe x16 Edge Finger
    • Internal PCIe Cable Port (two SFF-8654 74pin Connector)
  • PCI Express Bifurcation modes (Mainboard needs to have PCIe bifurcation mode support.)
    • Two PCIe Slots (x8, x8)
    • Three PCIe Slots (x8, x4, x4 or x4, x4, x8)
    • Four PCIe Slots (x4, x4, x4, x4)
  • Supports Low Profile PCI Form Factor (Low Profile PCI Bracket S-BR-00248-11-1020)
Introduction

DIP8X-PCIE16XB02 is Internal PCIe (two SFF-8654 8x 74pin) to PCI Express x16 Bifurcation Riser Card.

PCI Express bifurcation means splitting the PCI Express bus into smaller multi-slots . For example, one x16 PCI-Express Port can be bifurcated into two x8 PCI-Express Ports, each of which can be further bifurcated into two x4 PCI-Express Ports, and so on. This can be achieved from BIOS level if you want to split an existing lane.

The PCI-Express Bifurcation mode allows users to take advantage of a single PCI-Express x16 slot, through the use of DIP8X-PCIE16XB02, and transform their PCI-Express slot into the following modes:

  • Two PCIe Slots (x8, x8)
  • Three PCIe Slots (x8, x4, x4 or x4, x4, x8)
  • Four PCIe Slots (x4, x4, x4, x4)

Please be noted that your mainboard needs to have PCIe bifurcation mode support.

Related Products : SlimSAS 8i (SFF-8654) plug Cable, IPCIE16XD12

Technical Specifications
PCIe Host Port
  • PCIe x16 Edge Finger

Internal PCIe Port

  • Two SFF-8654 8x 85ohm 74pin Connectors

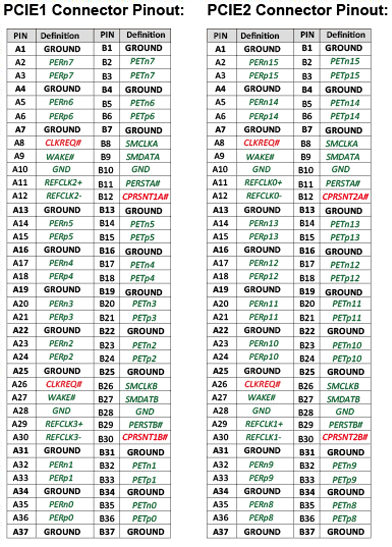

    • Connector Pinout

Switch for enabling REFCLK

SW1 REFCLK Enable Auto*
1 PCIE2A (REFCLK2A) ON OFF
2 PCIE2B (REFCLK2B) ON OFF
3 PCIE1A (REFCLK1A) ON OFF
4 PCIE1B (REFCLK1B) ON OFF

*Auto: Enable by CPRSNT#

SMbus Slave Address Setting Switch



Slave Address
A1 A0

SW2-1 SW2-2 SW2-3 SW2-4
0 0

0xE0 W
0xE1 R

ON ON X X
0 1

0xE2 W
0xE3 R

OFF ON X X
1 0

0xE4 W
0xE5 R

ON OFF X X
1 1

0xE6 W
0xE7 R

OFF OFF X X

Power outlet

(Rev 1.2 or later)

  • MINI-COMBICON Header
    • Power Output Range: DC 3.3V
  • One JST Compatible 2pin Wafer (Supply 3.3Vaux Power)
Computer Platform
  • Computer with PCI Express slot ( x16) supporrt PCIe bifurcation mode.

Note: Please verify with your mainboard manufacturer (such as Intel, Gigabyte, Supermicro, Portwell, Axiomtek, ASRock ...) to make sure the mainboard is bifurcated.

Physical Dimensions
  • 28.9(H)x153.7(L)mm
  • NW: 38.4g
Optional Accessories
  • Low Profile PCI Bracket (S-BR-00248-11-1020)
