Highlights
  • Host Bus: PCIe x8 Gen 2 (40.0 Gb/s), Low-Profile PCI Form Factor
    • Compliant with PCI Express Base Specification Revision 2.0
  • It supports the following SFP+ modules types which meet SFP+ specification:
    • 10GBASE-SR, 10GBASE-LR, Copper Direct Attach physical media
  • Intel® Ethernet Controller 82599ES
Introduction

SFP10X2-PCIE8XG21 is Dual 10 Gigabit Ethernet SFP+ to PCI Express x8 Gen 2 Host Card .

The SFP10X2-PCIE8XG21 adopts Intel third-generation 82599 10 Gigabit Ethernet controller, by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance. It has dual 10Gps SFP+ port which can setup a long-distance link with a file server or a remote workstation.


Technical Specifications
PCI Express
  • PCI Express Rev 2.0 specification (5 GT/s)
  • PCI Express Gen2 x8 Host Bus interface
Number of Port
  • Two SFP+ 20pin LC Connectors
Ethernet Feature
  • Transmission rate
    • 10GbE
  • IEEE Standard / Network topology
    • 10GBASE-SR, 10GBASE-LR, 10GSFP+Cu
  • Complies with the IEEE802.3ae specification
  • Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
  • Supports Receive-side scaling (RSS)
  • Supports IPv 4, IPv 6 protocols
  • Supports Jumbo Frames up to 15.5K
  • Supports Checksum offloading
  • Statistics for management and RMON
  • Support for virtual machines device queues
  • Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
Power consumption
  • 5.5 W
Cabling Requirements SFP+ Module 850nm Multi-Mode Fiber Transceiver
  • Fiber Optic Patch Cord Cable type ( Maximum link lengths)
    • 300 m Links in 50/125 μm MMF 2000 MHz*km OM3 Cables
    • 82 m Links in 50/125 μm MMF 500 MHz*km OM2 Cables
    • 66 m Links in 50/125 μm MMF 400 MHz*km Cables
    • 33 m Links in 62.5/125 μm MMF 200 MHz*km OM1 Cables

SFP+ Module 1310nm Single-Mode Fiber Transceiver

  • Fiber Optic Patch Cord Cable type ( Maximum link lengths)
    • 10 Km Links in 9/125 μm SMF OS2 Cables

10 Gigabit Ethernet over SFP+ Direct Attached cable (Twinaxial)

  • Length 10 meters max.
Computer Platform
  • Computer with PCI Express slot ( x8, x16)
Operating System Requirements
  • Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
  • Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
  • DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
Physical Dimensions
  • 64mm(H) x140mm(L)
  • NW: 107.3g
Related Products

CO-M0368 SFP+ module---OPTICAL TRANSCEIVER, 10Gbps 3.3V 850nm VCSEL Multi-Mode Fiber Transceiver, LC-Duplex

CO-M0418I SFP+ module--- OPTICAL TRANSCEIVER, 10Gbps 3.3V 1310nm Single-Mode Fiber Transceiver, LC-Duplex

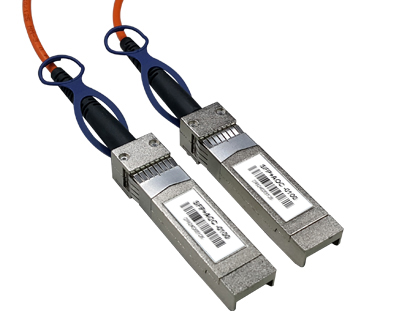

SFP+AOC---10G Ethernet SFP+ Active Optical Cable

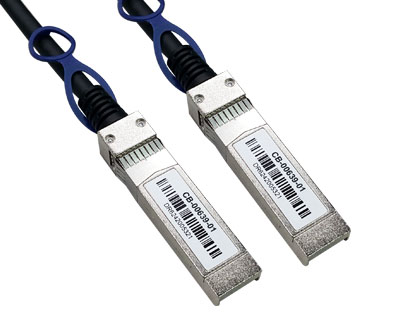

SFP+PDAC---10G Ethernet SFP+ Passive Cable
