Highlights
  • Upstream: 4-lane PCI Express (x2 mode)
  • Downstream: CFexpress Card Host Connector
    • Support the following type memory card
      • CFexpress Type-B Memory Card
      • XQD Memory Card (Require to install XQD Driver)
  • Not support Hot-Swap
Introduction

CFe-PCIE2XCA01 is CFexpress & XQD to PCI Express x4 (x2 mode) Adapter. You can insert your CFexpress Type B memory card or XQD memery card into the CFe-PCIE2XCA01 then insert it into standard PCIe slot on the computer.

For all those without CFexpress Slot on their computers, CFe-PCIE2XCA01 is an useful solution for installing CFexpress Type B memory card.

Technical Specifications

Upstream PCIe interface
  • 4-lane PCI Express (x2 mode)
Memory Card Connector interface
  • Push-Push Type CFexpress Card Host Connector
  • Support the following type memory card
    • CFexpress Type-B Memory Card
    • XQD Memory Card (Require to install XQD Driver)
Power
  • 3.3V through the PCIe slot
LEDs
  • Power Status LEDs
Physical Dimensions
  • 64.4mm(H) x 80mm(L)
N.W 44g
Computer Platform
  • Computer with PCI Express slot ( x4, x8, x16)
Kit includes
  • CFe-PCIE2XCA01
  • Low profile PCI Bracket
Application
Related Products

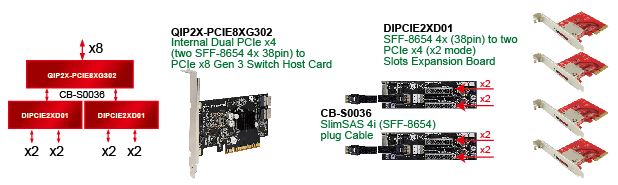

  • QIP2X-PCIE8XG302--- Dual PCIe x4 (two SFF-8654 x4 38pin) to PCIe x8 Gen 3 Switch Host Card

  • DIPCIE2XD01--- SFF-8654 4x (38pin) to two PCIe x4 (x2 mode) Slots Expansion Board

  • DIPCIE2XD01 + EC-00547--- 5.25 inch Form Factor for SFF-8654 4x (38pin) to two PCIe x4 (x2 mode) Slots Expansion Board

  • SlimSAS 4i (SFF-8654) Cable---SlimSAS 4i (SFF-8654) plug to SlimSAS 4i (SFF-8654) plug 85ohm Cable
