DIP8X-PCIE16XB02 Internal PCIe x16 bifurcation riser card

Highlights

Internal PCIe (two MCIO 8x) to PCI Express x16 Gen 5 Bifurcation Riser Card
- PCIe x16 Edge Finger
- Internal PCIe Cable Port (two MCIO 8x Connector)
PCI Express Bifurcation modes (Mainboard needs to have PCIe bifurcation mode support.)
- Two PCIe Slots (x8, x8)
- Three PCIe Slots (x8, x4, x4 or x4, x4, x8)
- Four PCIe Slots (x4, x4, x4, x4)
Supports Low Profile PCI Form Factor (Low Profile PCI Bracket S-BR-00248-11-1020)

Introduction

DIP8X-PCIE16XB21 is PCIe x16 Edge Finger to two MCIO Connectors Add-in Card. It required no additional software or drivers to operate so user can set up for PCIe internal expansion quickly and easily.

The Fixed-Side Connectors (two MCIO 8x) are defined to support multiples of x8 link width. The cabled channel was developed using 85Ω as a target for both PCB’s and cables.

It’s a cost-effective solution for bifurcation application. PCIe bifurcation means splitting the PCI Express bus into smaller multi-slots . For example, one x16 PCIe Port can be bifurcated into two x8 PCIe Ports, each of which can be further bifurcated into two x4 PCIe Ports, and so on. This can be achieved from BIOS level if you want to split an existing lane.

The PCIe Bifurcation mode allows users to take advantage of a single PCIe x16 slot, through the use of DIP8X-PCIE16XB21, and transform their PCIe slot into the following modes:

Two PCIe Slots (x8, x8)
Three PCIe Slots (x8, x4, x4 or x4, x4, x8)
Four PCIe Slots (x4, x4, x4, x4)

Please be noted that your mainboard needs to have PCIe bifurcation mode support.

Technical Specifications

PCIe Host Port

PCIe x16 Edge Finger

Internal PCIe Port

Two MCIO 8x
- 85ohm 74pin Connectors

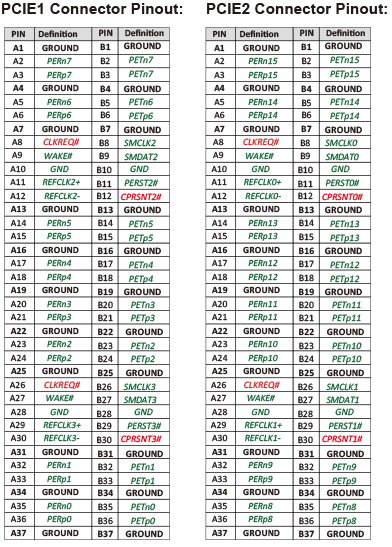

- Connector Pinout

Switch for enabling REFCLK

SW1	REFCLK	Enable	Auto*
1	PCIE2A (REFCLK0)	ON	OFF
2	PCIE2B (REFCLK1)	ON	OFF
3	PCIE1A (REFCLK2)	ON	OFF
4	PCIE1B (REFCLK3)	ON	OFF

*Auto: Enable by CPRSNT# (MCIO Connector Pin B12)

SMbus Slave Address Setting Switch

Slave Address A1 A0		SW2-1	SW2-2	SW2-3	SW2-4
0 0	0xE0 W 0xE1 R	ON	ON	X	X
0 1	0xE2 W 0xE3 R	OFF	ON	X	X
1 0	0xE4 W 0xE5 R	ON	OFF	X	X
1 1	0xE6 W 0xE7 R	OFF	OFF	X	X

Power Outlet

3V3aux Power Outlet: JST Wafer 2pin (2.0mm)
3.3V Power Outlet:
- MINI-COMBICON Header
- Power Output Range: DC 3.3V

Computer Platform

Computer with PCI Express slot ( x16) supporrt PCIe bifurcation mode.

Note: Please verify with your mainboard manufacturer (such as Intel, Gigabyte, Supermicro, Portwell, Axiomtek, ASRock ...) to make sure the mainboard is bifurcated.

Physical Dimensions

28.9(H)x153.7(L)mm
NW: 38g

Optional Accessories

Low Profile PCI Bracket (S-BR-00248-11-1020)
