Highlights
  • Host Bus: PCIe x16 Gen 3 (8.0 GT/s)
    • Compliant with PCI Express Base Specification Revision 3.0
  • Eight independent USB 3.1 Gen 2 (10Gbps) Host Controllers
    • Compliant with Universal Serial Bus 3.1 specification Revision 1.0
    • Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.1
  • Sixteen USB 3.1 Cable Ports (Eight Type-C & Eight Std-A Receptacle)
    USB 3.1 Standard A-type lock mechanism
  • 5.25" ODD Form Factor (QU31-IP2XG324)
Introduction

The 8U316-PCIE16XG302 is an Eight channel 16-port (2-port x8) Type-C & Std-A USB 3.1 Gen 2 (10Gbps) to PCI Express x16 Gen 3 Host Card.

8U316-PCIE16XG302 is integrated by the following three key parts (1626-PCIE16XG301, QU31-IP2XG324, CB-S0088-C30).

  • 1626-PCIE16XG301
    • Internal Eight PCIe x2 & Four PCIe x4 (SFF-8643) to PCIe x16 Gen 3 Switch Host Card
  • Two QU31-IP2XG324
    • Integrated four USB 3.1 Gen 2 (10Gbps) to PCIe x2 Gen 3 (8Gbps) Host Controllers (Asmedia ASM3142, USB IF TID 5080000010).
  • Four CB-S0088-C30
    • SFF-8643 4x to SFF-8654 4x Cable

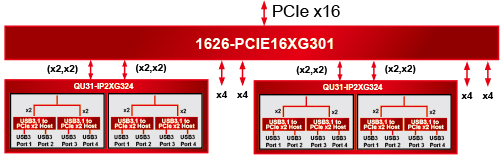

Utilizing the standard PCI Express Switch, the 48-Lane/13-Port PCI Express Switch provides the most efficient fan-out solution for integrating Eight PCI Express to USB 3.1 Single Chip Host controllers into a small board design. Each USB 3.1 to PCI Express Single Chip Host controller takes advantages of 10 Gbps burst rate of 2-lane PCI Express bus in both directions and is fully compliant with PCI Express Base specification r3.0. This solution provides full PCI Express and USB 3.1 functionality and performance.
Technical Specifications

1626-PCIE16XG301

Upstream PCIe interface
  • 16-lane PCI Express
    • PCIe Gen 1 (2.5 GT/s)
    • PCIe Gen 2 (5.0 GT/s)
    • PCIe Gen 3 (8.0 GT/s)
Downstream PCIe interface
  • Four SFF-8643 Fixed-Side Connectors
    • 85ohm, 36pin
    • PCIe 4-lane
  • Four SFF-8643 Fixed-Side Connectors
    • 85ohm, 36pin
    • Dual PCIe 2-lane
Key Features
  • Standards Compliant
    • PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1 & 2.0)
    • PCI Power Management Spec r1.2
    • Microsoft Vista Compliant
    • Supports Access Control Services
    • Dynamic link-width control
    • Dynamic SerDes Speed Control
  • High Performance
    • performancePAK
      • Multicast
      • Dynamic Buffer/FC Credit Pool
    • Non-blocking switch fabric
    • Full line rate on all ports
    • Packet Cut-Thru with 126ns max packet latency
    • 2KB Max Payload Size
  • Integrated DMA Engine
    • Four DMA Channels
    • Internal Descriptor Support
    • DMA function independent from transparent switch function
    • 64-bit Addressing
    • Pre-fetch Descriptor Mode
    • Stride Mode
  • Quality of Service (QoS)
    • Two Virtual Channels
    • Eight Traffic Classes per port
    • Weighted round-robin source port arbitration
Computer Platform Requirements Desktop computer equipped with a PCIe 3.0 x16 slot

QU31-IP2XG324

PCI Express
  • Two SFF-8654 4x 85ohm 38pin Connectors
  • Each SFF-8654 Connector 4-lane PCI Express
    • PCIe Gen 3 (8.0 GT/s)
USB Features
  • Up to USB 3.1 Gen 2 10Gbps
  • Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
  • Compliant with Universal Serial Bus Specification Revision 2.0
  • Compliant with USB Attached SCSI Protocol Revision 1.0
  • Support Multiple INs function
  • Support USB 3.1 and USB 2.0 Link Power Management
  • Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
  • Support independent port power control
  • Support overcurrent detection
  • Support Remote/Wakeup event
  • Integrate Spread Spectrum Controller for USB3.1 interface
  • Backward compatible with Legacy USB function and device
  • Support the Debugport
Number of Ports

Eight USB 3.1

  • Four Type-C Receptacle
  • Four Standard A-type Receptacle
USB3 cable lock mechanism
  • Provides the threaded holes for the jack-screws of USB 3.1 Type-C Plug w/Jackscrew lock Cable

  • Provides the threaded holes for the jack-screws of USB 3.1 A Plug w/Jackscrew lock Cable



USB Bus Power Input

DC 12V (Step-Down) from either Big IDE 4-pin DC Power Connector or/and SATA 15pin Power Connector


Operating System Requirements
  • Inbox driver for Windows 8 later, Linux (kernel 3.x.x later)
Physical Dimensions
  • 1626-PCIE16XG301
    • 64.4mm(H) x 165mm(L)
    • NW: 142.3g
  • QU31-IP2XG324
    • 5.25" ODD Form Factor
    • 146.6(W) x 42(H) x 71 (D) mm
    • NW: 295.5g
Kit includes

Kit 1: 8U316-PCIE16XG302B

  • 1626-PCIE16XG301
  • Two QU31-IP2XG324
  • B: Four CB-S0088-C30-050, L=0.5M

Kit 2: 8U316-PCIE16XG302D

  • 1626-PCIE16XG301
  • Two QU31-IP2XG324
  • D: Four CB-S0088-C30-080, L=0.8M
