FW2UTP5 is a IEEE-1394 to UTP5 Repeater featuring Texas Instrument's TSB41BA3 and TSB17BA1. FW2UTP5 enables 1394b 100-Mbps signals to be transmitted and received across up to 100 meters of unshielded twisted-pair category 5 (UTP5) cable. FW2UTP5 also works for CAT5-structured wiring cable that is typically installed in a home or office.

• Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
• Fully Interoperable With Firewire, SB1394, DishWire, and i.LINK Implementation of IEEE Std 1394
• Fully Supports Provisions of IEEE Std 1394b-2002 at S100B Signaling Rates
• Provides One Transceiver to Drive IEEE Std 1394b Signaling Across Unshielded Twisted Pair Category 5 (UTP5 or CAT5) Cable or Better at 100 Megabits per Second (Mbits/s)
• DC Power Connector: Walkman-type 1.3 mm DC Jack
• Power Input Range: DC 8V~30V, max. 1.35A

FW2UTP5-0X (Compatible with 100baseT Ethernet)
The wiring signal of the RJ45 connector is compatible with 100baseT Ethernet (pin1,2,3,6).  Users can use the standard Cat5 cable (cross type).

Pin Signal 1 TPB 2 TPB* 3 TPA 4 +V(BusPower) 5 0V(Ground) 6 TPA* 7   8

Available Models:

Enlarge	Model	Mode NO.	Self-ID	Type	Description

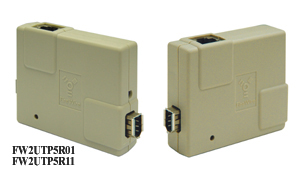

	FW2UTP5R01	8	1394a S100	T-type	Two FireWire (6pin) and one RJ45 port
	FW2UTP5-01	24	1394b		One FireWire (6pin) to one RJ45 port
	FW2UTP5-02A	24	1394b	Corner type	One FireWire (6pin) to two RJ45 ports

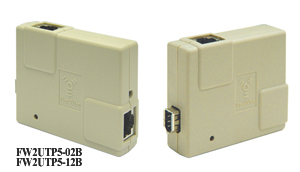

	FW2UTP5-02B	24	1394b	T-type	One FireWire (6pin) to two RJ45 ports

FW2UTP5-1X (IEEE Std 1394b-2002)
The wiring signal of the RJ45 connector follow IEEE Std 1394b-2002 (pin1,2,7,8).  The wiring signal of the RJ45 connector is incompatible with 100baseT Ethernet (pin1,2,3,6).  Users can't use the standard Cat5 cable (cross type).   A Cat5-cross-type cable (pin1,2,7,8) is needed for testing.

Pin Signal 1 TPB 2 TPB* 3   4   5   6   7 TPA 8 TPA*

Available Models:

Enlarge	Model	Mode NO.	Self-ID	Type	Description
	FW2UTP5R11	8	1394a S100	T-type	Two FireWire (6pin) and one RJ45 port
	FW2UTP5-11	24	1394b		One FireWire (6pin) to one RJ45 port
	FW2UTP5-12A	24	1394b	Corner type	One FireWire (6pin) to two RJ45 ports
	FW2UTP5-12B	24	1394b	T-type	One FireWire (6pin) to two RJ45 ports

• Desktop PC:
  With either a built-in FireWire (IEEE-1394) controller or a FireWire (IEEE-1394) to PCI Host Adapter equipped with an external FireWire (IEEE 1394) port.
• Laptop PC:
  With either a built-in FireWire (IEEE-1394) controller or a FireWire (IEEE-1394) to CardBus PC Card equipped with an external FireWire (IEEE 1394) port.

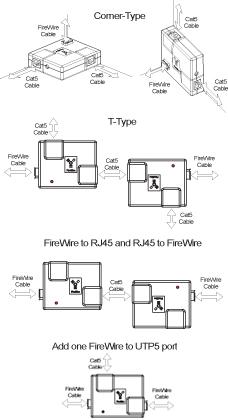

FW2UTP5-02A/12A is good for Corner-Type application.
FW2UTP5-02B/12B & FW2UTP5R01/11 are good for T-Type application.
FW2UTP5-01/11 is for FireWire to RJ45 and RJ45 to FireWire
FW2UTP5R01/11 is add one FireWire to UTP5 port
